Description

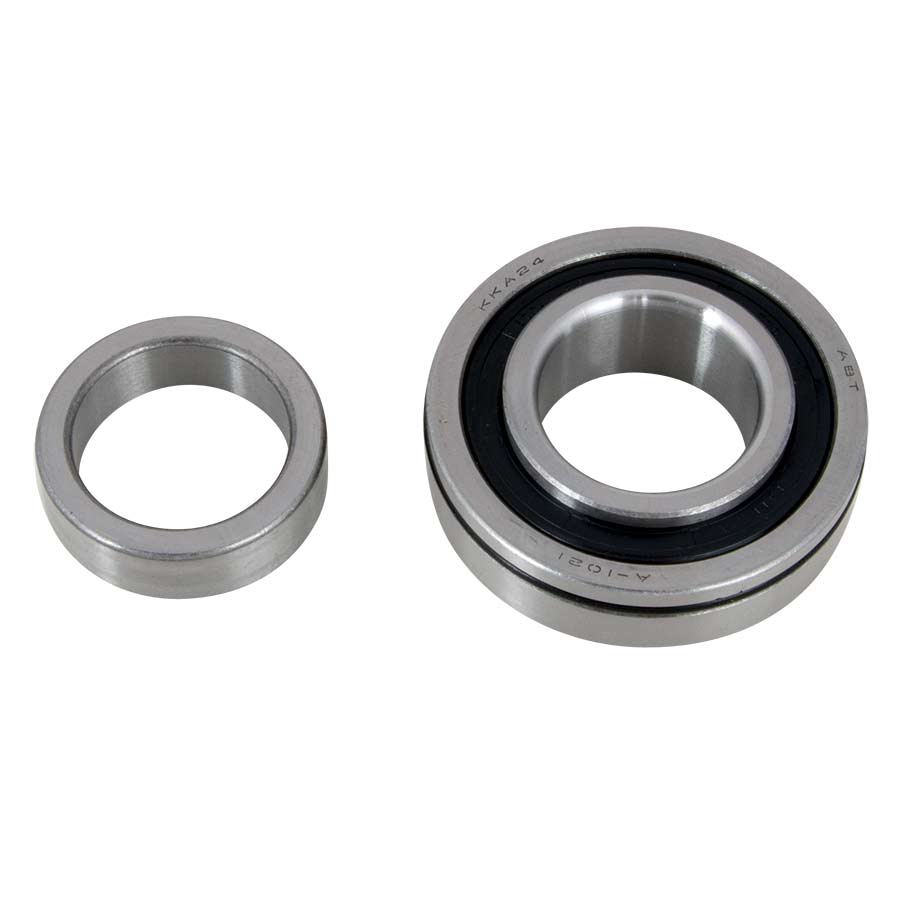

Sealed Ball Bearing with Locking Collar
Part Number: Strange Engineering A1021
Features
- 3.150″ OD x 1.562″ ID
- Outer seal & O-ring eliminate the need for an inner axle seal
- Includes locking collar
Installation Notes
- Bearing & locking collar should be pressed on at room temperature
- Pre-heating is not recommended as collars can lose holding power
- Never “tack-weld” collars – this can damage the axle's heat treatment
Axle Bearing With Locking Collar
The axle bearing and locking collar are important for keeping the axles engaged in the carrier and transferring torque. The locking collar is the part that keeps theaxle bearing in place allowing it to do it’s job.
These units are designed and built to meet or exceed OE specifications for excellent fit and reliable performance. It will keep your axles under control and spinning down the road.
The Strange Axle Bearing is Made from 4140 steel and has a fine finish on the outer diameter for a proper fit.
Heating the locking collar can reduce it’s holding power and ruin the seal surface. It should be cold pressed only. Tack-welding can alter the axle’s heat treating and cause cracking.
Sealed Ball Style Axle Bearing For 3.150 OD Housing Ends 3.150 x 1.562
