Description

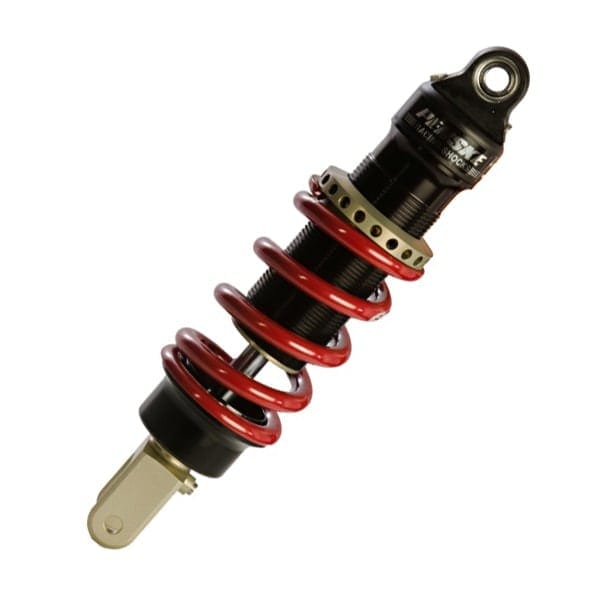

Penske 8975 Series Racing Shock
The 8975 is the latest addition to Penske Racing Shocks' successful shock lineup. As the most economical multi-adjustment shock, it features all the standard PRS parts known for their quality and repeatability. Every shock is 100% hand-built and dyno-tested to ensure optimal performance and customer satisfaction. Penske stands behind its products and routinely assists customers in maximizing performance. The same components in the 8975 are used worldwide in the highest levels of Motorsport.
The 8975 series shocks are factory-set with recommended starting settings for your application. They come pre-pressurized and ready to install.
The Penske Advantage
- Standard Penske 55mm bore size allows use of a wide array of piston types
- Low-friction shaft and piston seals
- Hard-anodized 6000 series aluminum bodies and components for durability and repeatability
- Hard-chromed 4130 main shaft with rolled threads for strength and low breakaway friction
- Durable ACME thread body allows quick spring preload adjustments (.100″ per turn)
- Simple, in-line design for the lightest weight and easy installation
- Winning heritage – trusted by champions across all forms of Motorsport
- Made in the U.S.A. – Designed, machined, assembled, and tested entirely in the United States
Frequently Asked Questions
How many adjuster settings does the 8975 have?
Both compression and rebound have 40 clicks of adjustment. Compression offers around 150 lbs of adjustment range, while rebound varies depending on the type of valving (typically 250–400 lbs).
What is the difference between the 8975 and the 8300?
While both are double-adjustable, the 8975 has limited stroke options due to the in-line nitrogen reservoir. This design reduces the available stroke by approximately 1” to 1.75”, depending on the application.
How much lighter is the 8975 compared to a similar remote reservoir shock?
The 8975 can weigh anywhere from 0.5 lbs to a full 1 lb less than a comparable remote double-adjustable shock, depending on the model.
Note: Not all makes or models are available. Check the application chart to see if your bike is supported. If it’s not listed, contact us— we may be able to create a custom version using your OEM or existing shock.
Also note: Prices may vary depending on the model. Some shocks require additional fabrication, which may incur extra costs. The application chart outlines any additional fees.
Lead Time: All shocks are hand-built to order. Please allow a minimum of 10 business days for processing. Lead times may be longer during peak seasons. For more information or specific delivery requests, contact us before placing your order.
