Mopar New Style Axle Bearing & Plate – Each For 2.875″ ID Mopar Housing End Fits Axles With 1.5635″ Bearing Area

2.875″ x 1.562″ Mopar snap-ring style bearing with retainer plate

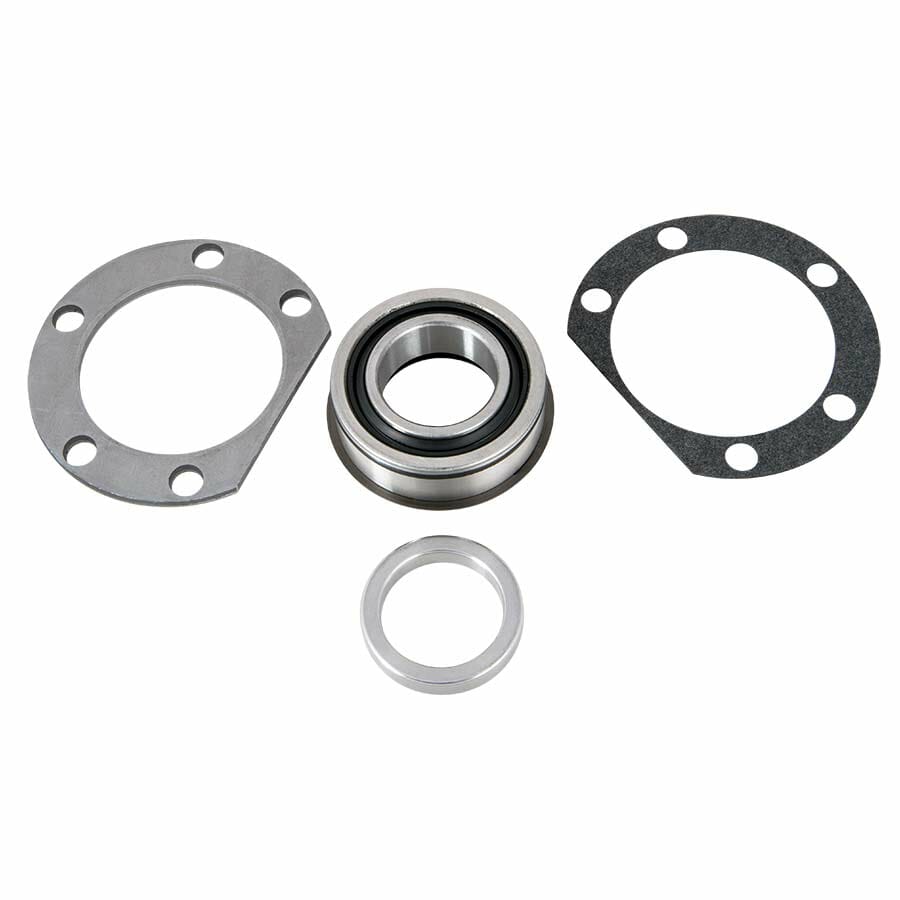

Sealed Ball Bearing & Retainer Plate Kit

Part Number: Strange Engineering A1022

Sealed Ball Bearing Features

• 2.875″ OD x 1.562″ ID
• Outer seal & O-ring eliminate the need for an inner axle seal
• Spirolox fits into groove on bearing OD to prevent movement
• Includes locking collar

Retainer Plate Features

• Stamped steel plate retains Spirolox against housing end

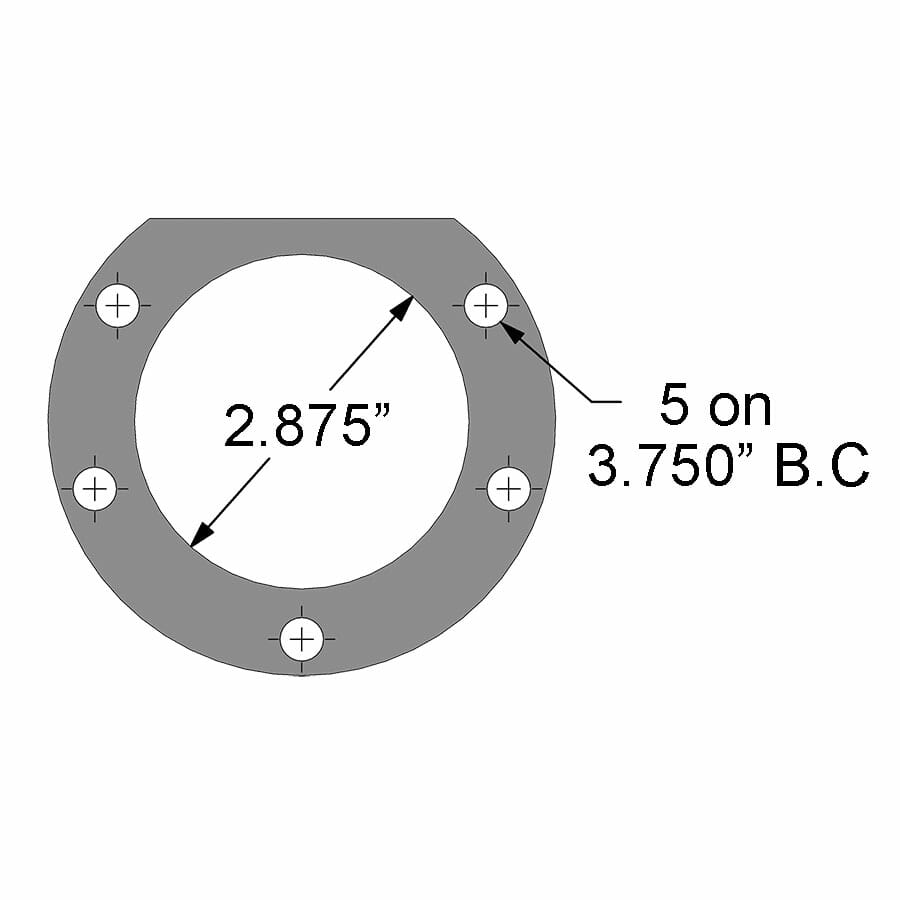

• Five on 3.75″ bolt pattern with holes for 3/8″ studs
• Includes gasket

Notes

For old style bearing with fixed plate – see Strange Engineering A1022OB.

Installation Instructions

• Bearing & locking collar should be pressed on at room temperature
• Pre-heating is not recommended as collars can lose holding power
• Never “tack-weld” collars – this can damage the axle's heat treatment
