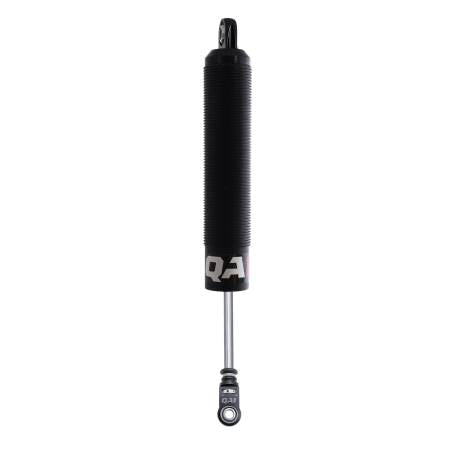

QA1’s rebuildable twin tube shocks deliver the performance, consistency, and tunability racers demand. Formerly known as the 60 and 62 series shocks, the 6Q series features an aluminum large-body design. The threaded body makes it easy to use in coil-over configurations with QA1 kits (sold separately). Racers can choose from 6”, 7”, 8”, and 9” bearing mount shocks depending on rules and applications. These shocks are also available with rebound adjustability, allowing fine-tuning of valving directly at the track.
Performance Details
- Scalloped base loop increases clearances in tight areas such as upper control arms and shock mounts
- Pistons made from high-quality raw aluminum to ensure maximum consistency
- Customizable valving with bleed shims or drilled bleeds for increased tunability
Key Features
- Can be re-valved and rebuilt in minutes using basic tools
- Gland features relief cuts and a hyper screw port for easy filling and bleeding during assembly
- Upgraded seal kit minimizes leaks, especially in high-rebound applications
- Slip-fit compression tube design simplifies the rebuild process
- Laser-engraved, black-anodized closure nuts provide easy-to-read serial numbers and valving specs at the track or in the shop
- Rebuildable and re-valvable using available QA1 kits (sold separately)
Specifications
- Type: Twin Tube
- Body Diameter: 2”
- Body Material: Aluminum
- Body Finish: Black anodized
- Threaded Body: Yes
- Mounting: Bearing
- Adjustable Valving: Rebound adjustable
- Piston: Linear or Linear Digressive
- Base Valve: Yes
- Gas Charged: No
- Coilover Compatible: Yes
Coilover Kits
- QA1 CK6Q00 – 2-1/2” ID SPRING
- QA1 CK6Q01 – 2-1/2” ID SPRING BILLET
Applications
Late Models, Asphalt Modifieds, Sprint Cars
