Description

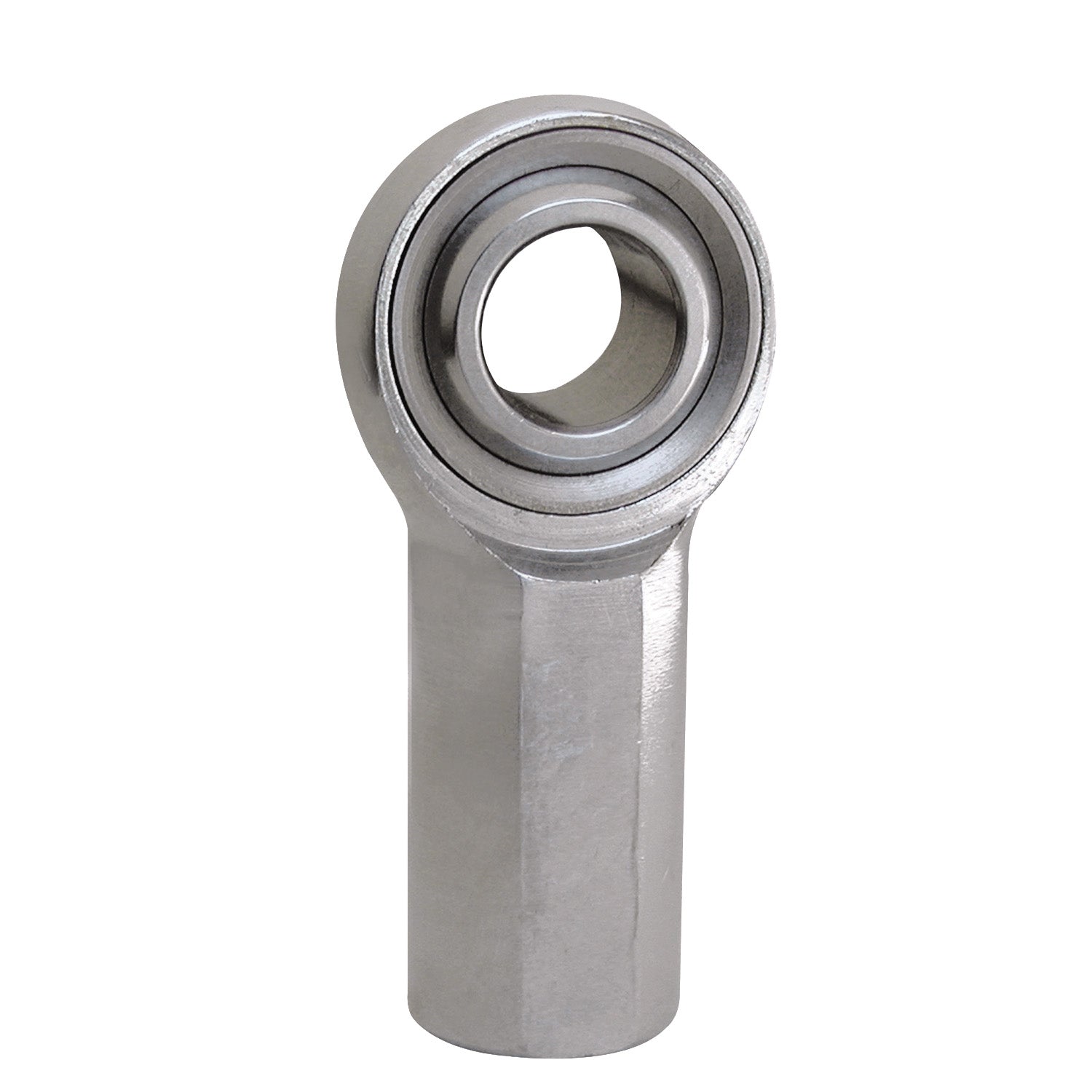

QA1 MHF Series Metric Female Rod Ends
QA1's MHF Series alloy/chromoly metric female rod ends are precision constructed in a traditional three-piece design. These precision rod ends feature a higher ball-to-race conformity, resulting in tighter tolerances. This makes them ideal for precision applications where such tolerances are critical.
The rod ends are heat treated and available in right- or left-hand threads. Grease fittings and stud configurations are also available.
Construction Details
- Ball: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
- Race: Alloy/Chromoly Steel
- Body: Alloy/Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance
Specifications
- Rod End Series: MH Series
- Style/Construction: 3 Piece Alloy
- Bore: 12mm
- Thread Direction: RH
- Thread Size and Pitch: M12 x 1.75
- Thread Type: Female
- PTFE Lined: No
- Configuration: Standard
