Description
Pro Series Rear Brake Kit for 1 Pc Dragster Housing with DRM-35 Metallic Pads
Designed Specifically For Drag Racing

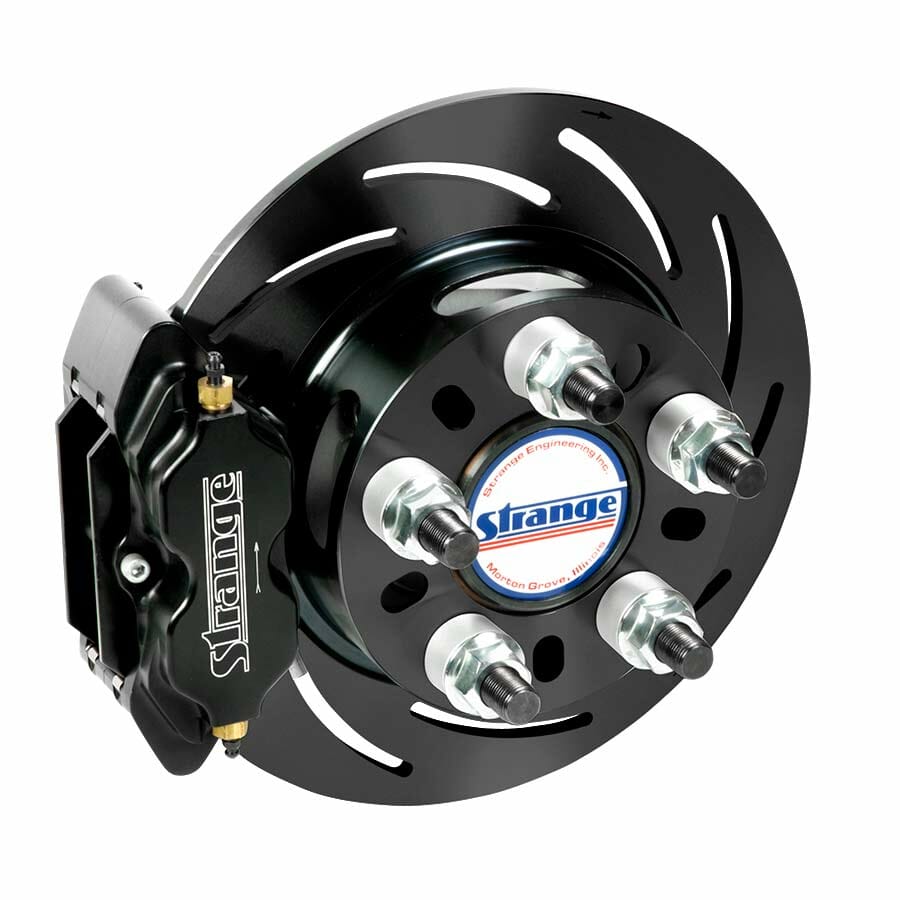

Pro Series Rear Brake Kit
For Strange one-piece aluminum Dragster housing (Strange Engineering H1151 / Strange Engineering H1161 / Strange Engineering H1152 / Strange Engineering H1162)
Requires:
• Ball style axle bearings

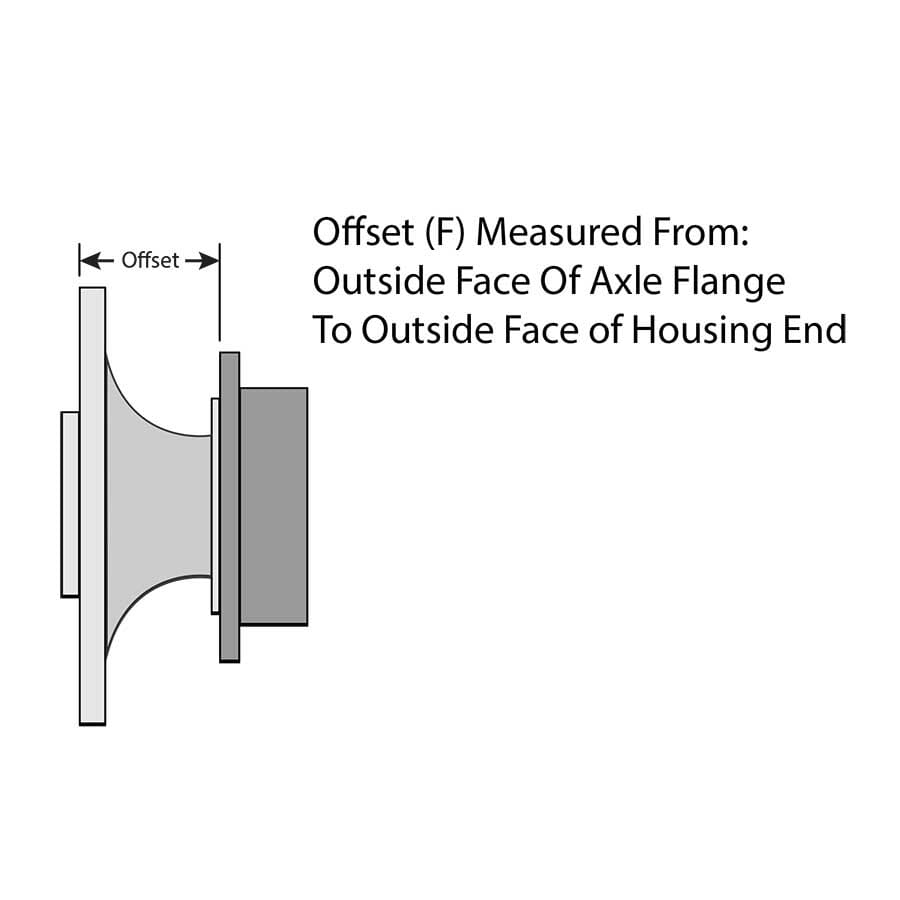

• 2.332″ brake offset
For 2.832″ offset: Strange Engineering B1150WCM

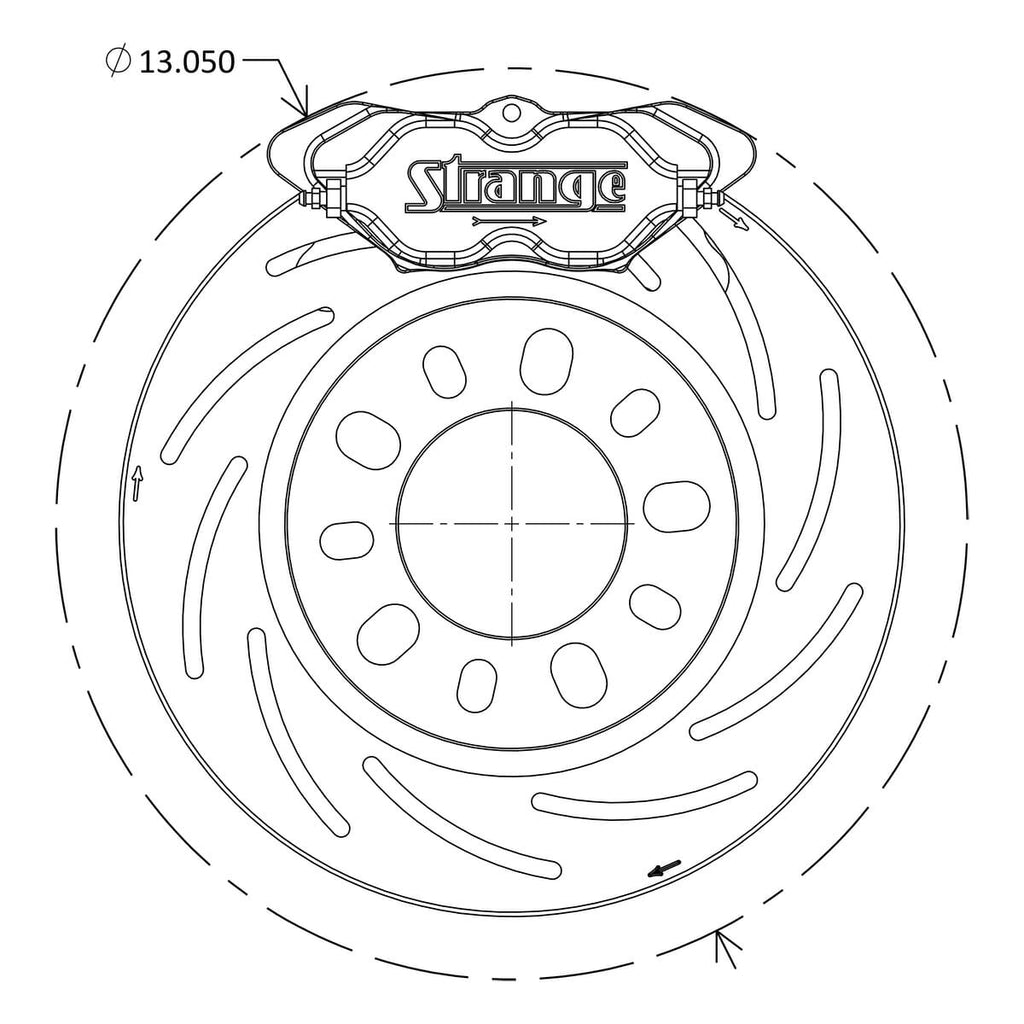

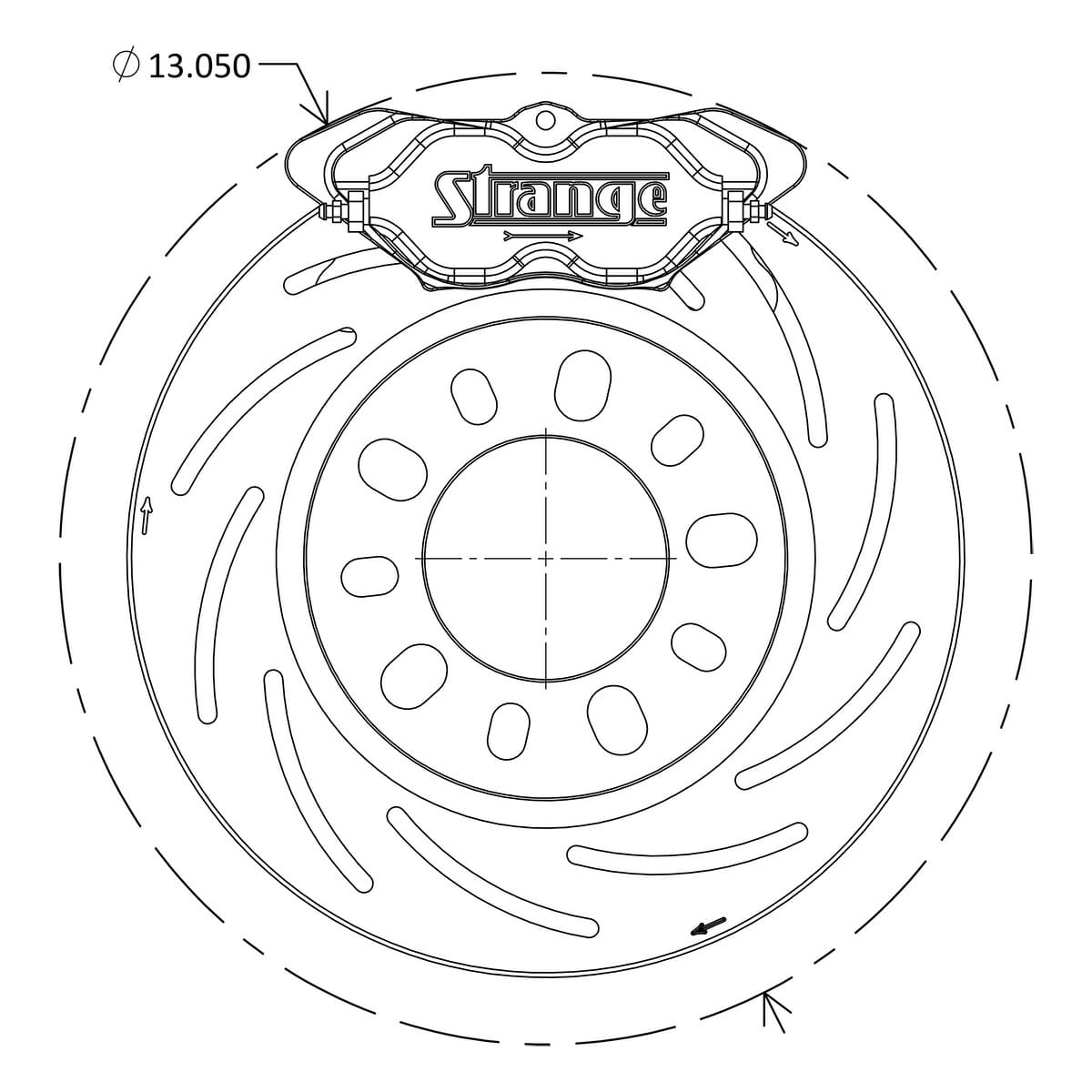

One-Piece Forged Steel Rotors – Strange Engineering B2792 / Strange Engineering B2793
- Directional slots increase air flow and reduce weight
- One-piece design eliminates bolts & safety wire
- Hat section drilled & milled to further reduce weight

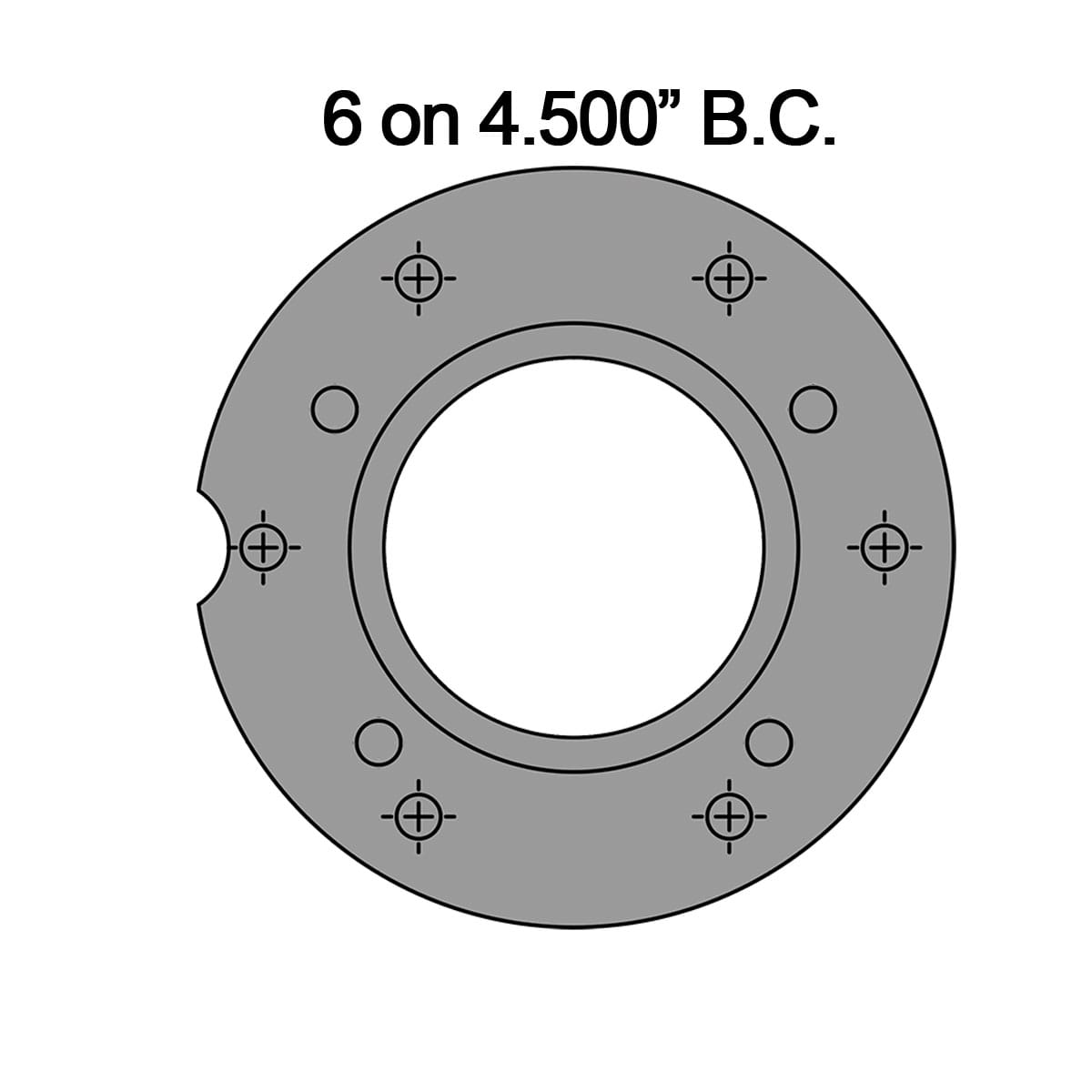

- 4 1/2″, 4 3/4″ & 5″ Uni-Lug bolt circles for both 1/2″ & 5/8″ studs
Four-Piston Directional Calipers – Strange Engineering B5002 / Strange Engineering B5004
- Aluminum bodies drastically reduce weight
- 1.625″ & 1.750″ pistons vary pressure, decreasing pad taper
- Stainless steel pistons resist corrosion
- Anti-rattle clips reduce brake pad vibration and noise

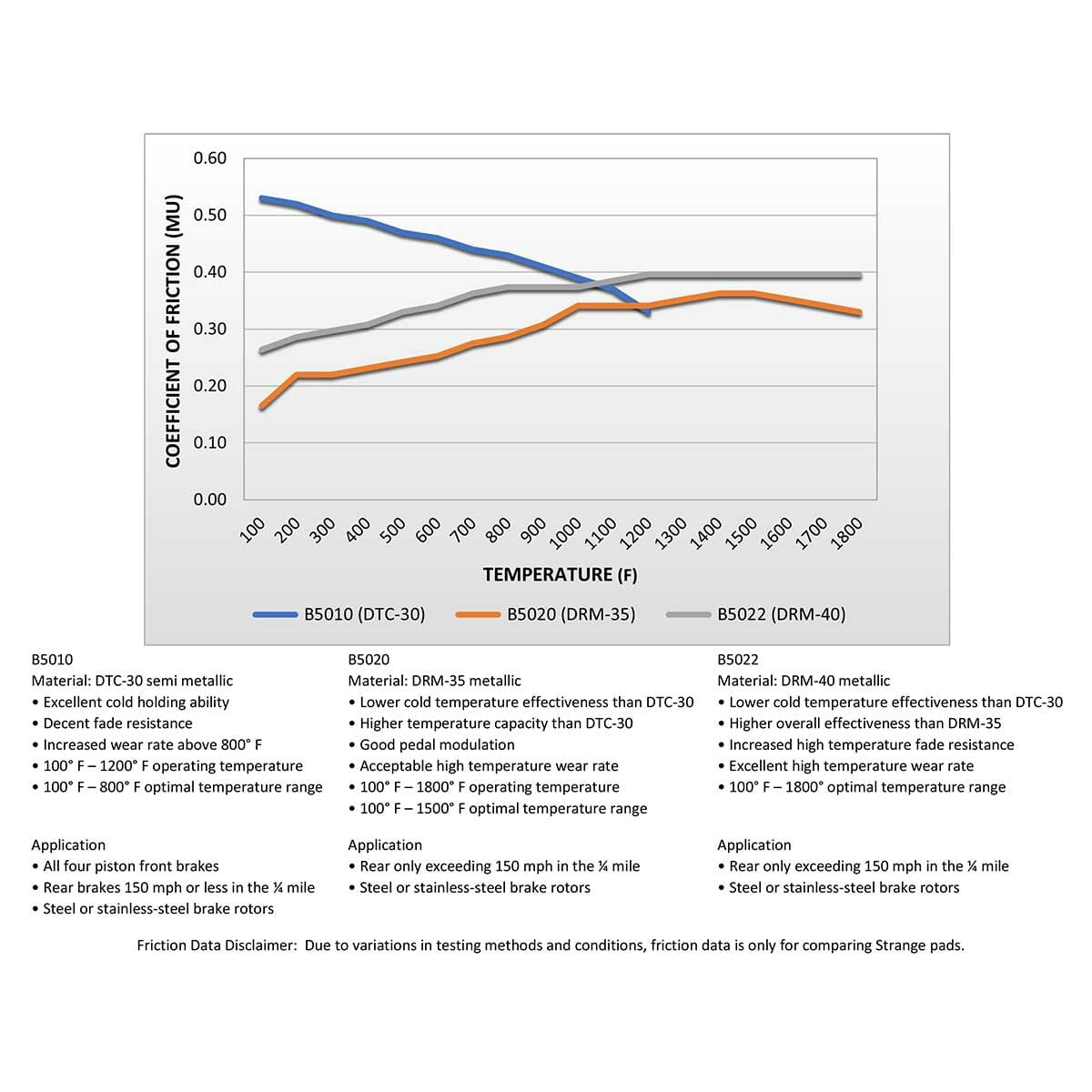

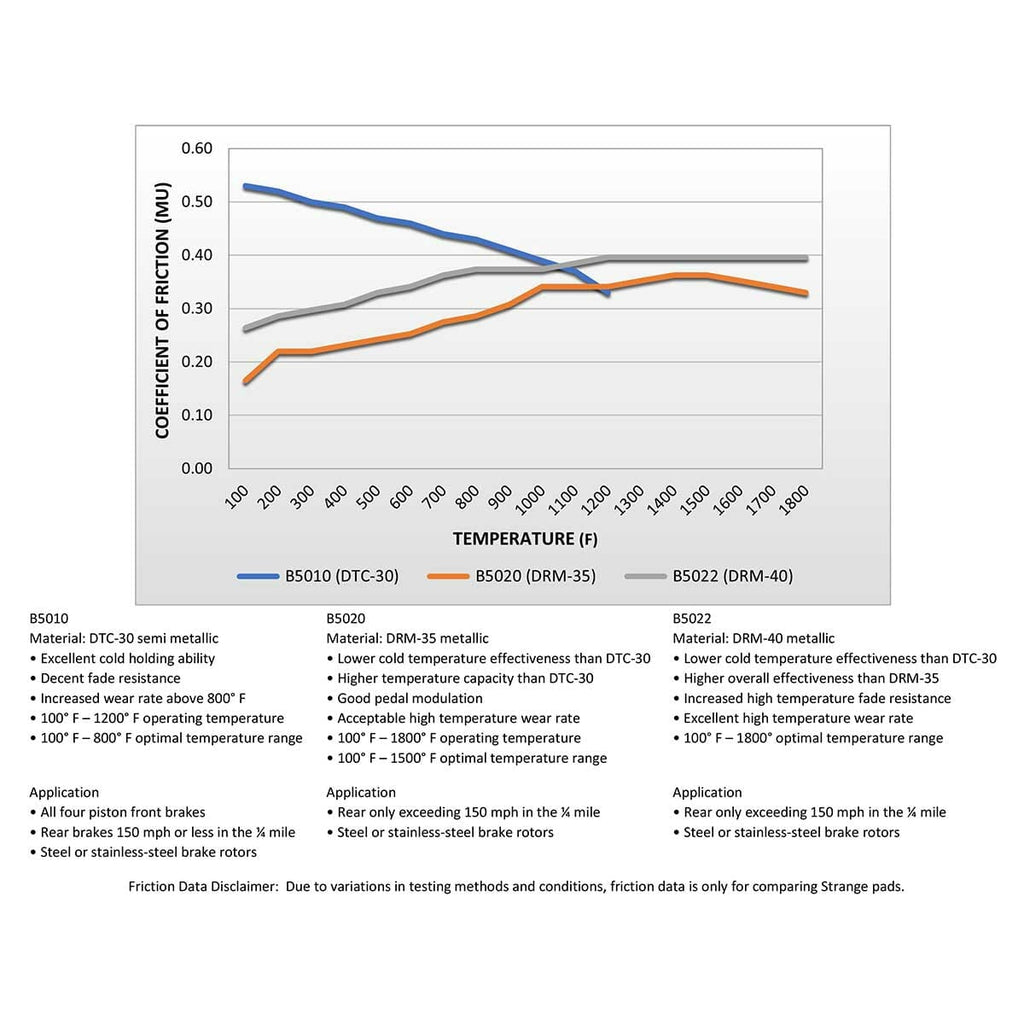

DRM-35 Metallic Brake Pads – Strange Engineering B5020
- Provides high resistance to brake fade
- Recommended for vehicles going over 150 MPH in the 1/4 mile
- Maintains decent starting-line cold holding capabilities
- May leave pad residue on rotors when not using parachute
- While common, it’s recommended to remove when installing new pads
Aluminum Caliper Mounts
- Billet one-piece design
- Eliminates bolts, spacers & nuts that require periodic maintenance
Housing End Bolt Kit
- Provides additional components not supplied in most aftermarket kits
Optional Upgrades:
- Need More Wheel Clearance? Evolution 4 Low Profile Caliper Option – Strange Engineering OPRB10
- Want Billet Calipers? Evolution 4 Billet Caliper Option – Strange Engineering OPRB07
Additional Notes:
- Brake hoses and lines are not included
- Calipers are tapped 1/8″ NPT and supplied with a straight male 3 AN fitting
- Use Teflon® tape or liquid on the pipe threads of the fitting
- Leave a few threads from the tip uncoated to avoid material deposits inside the caliper
- Torque fitting to 25 ft-lbs
Related Part:
With DTC-30 pads – Strange Engineering B1158WC
