Description
Pro Series Rear Brake Kit for 1 Pc Dragster Housing with DTC-30 Semi-Metallic Pads
Designed Specifically For Drag Racing

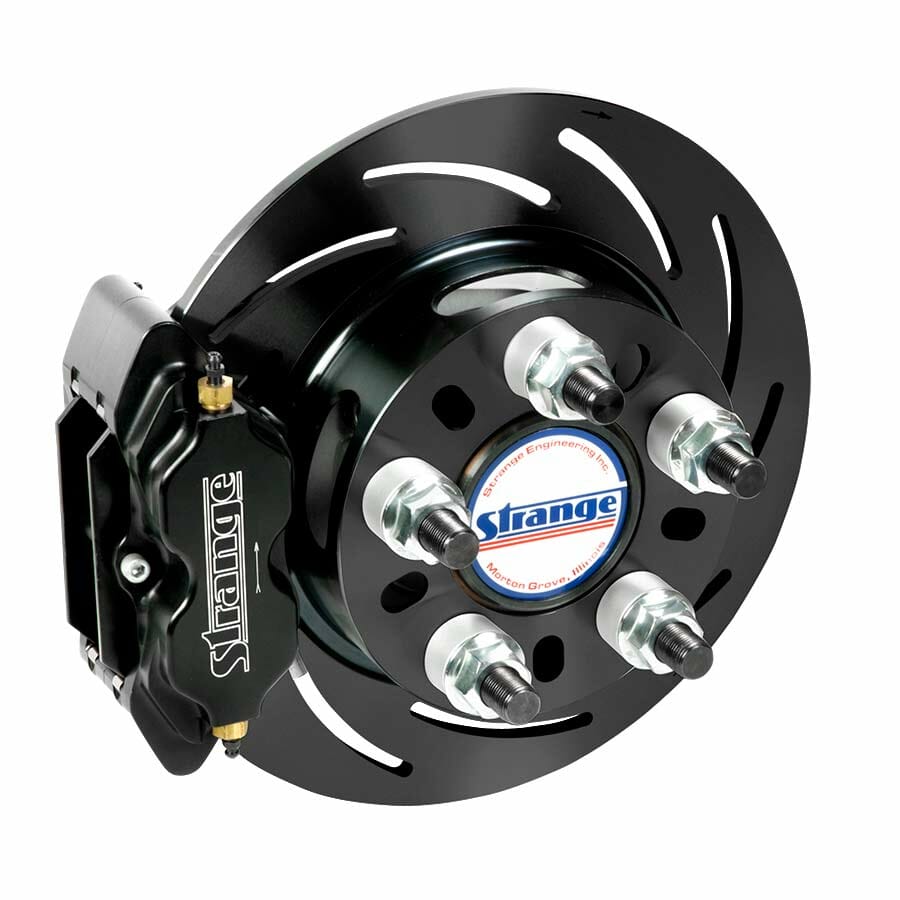

Pro Series Rear Brake Kit
For Strange one-piece aluminum Dragster housing (H1151 / H1161 / H1152 / H1162)
Requires:
• Ball style axle bearings

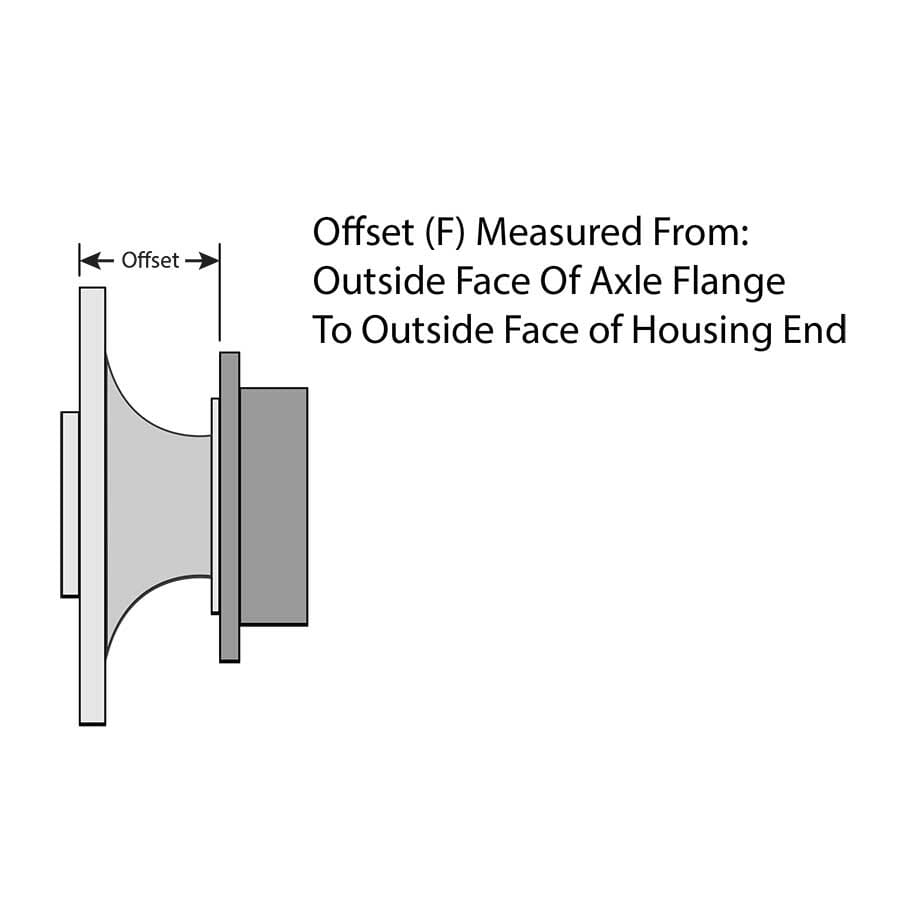

• 2.332″ brake offset
For 2.832″ offset: B1150WC

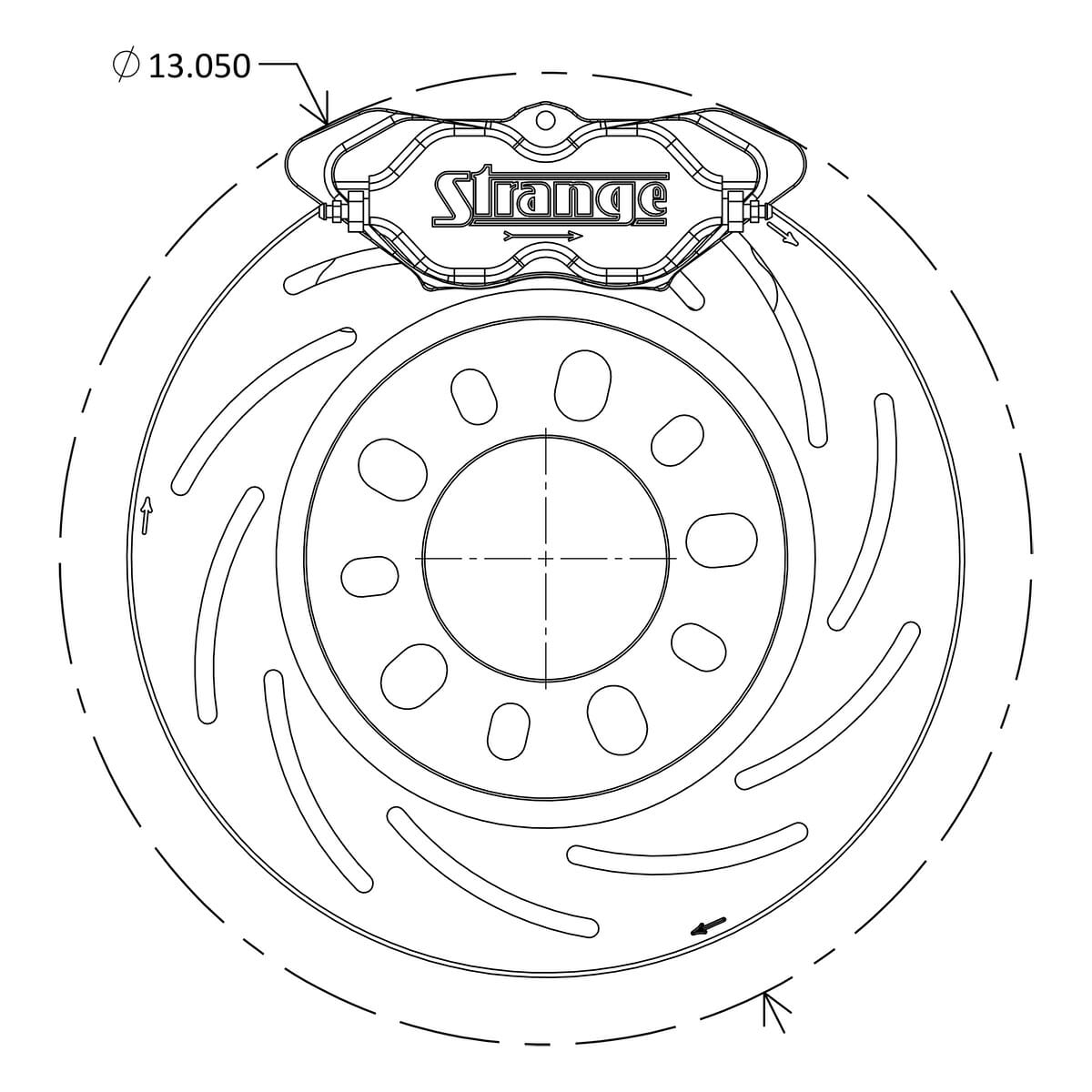

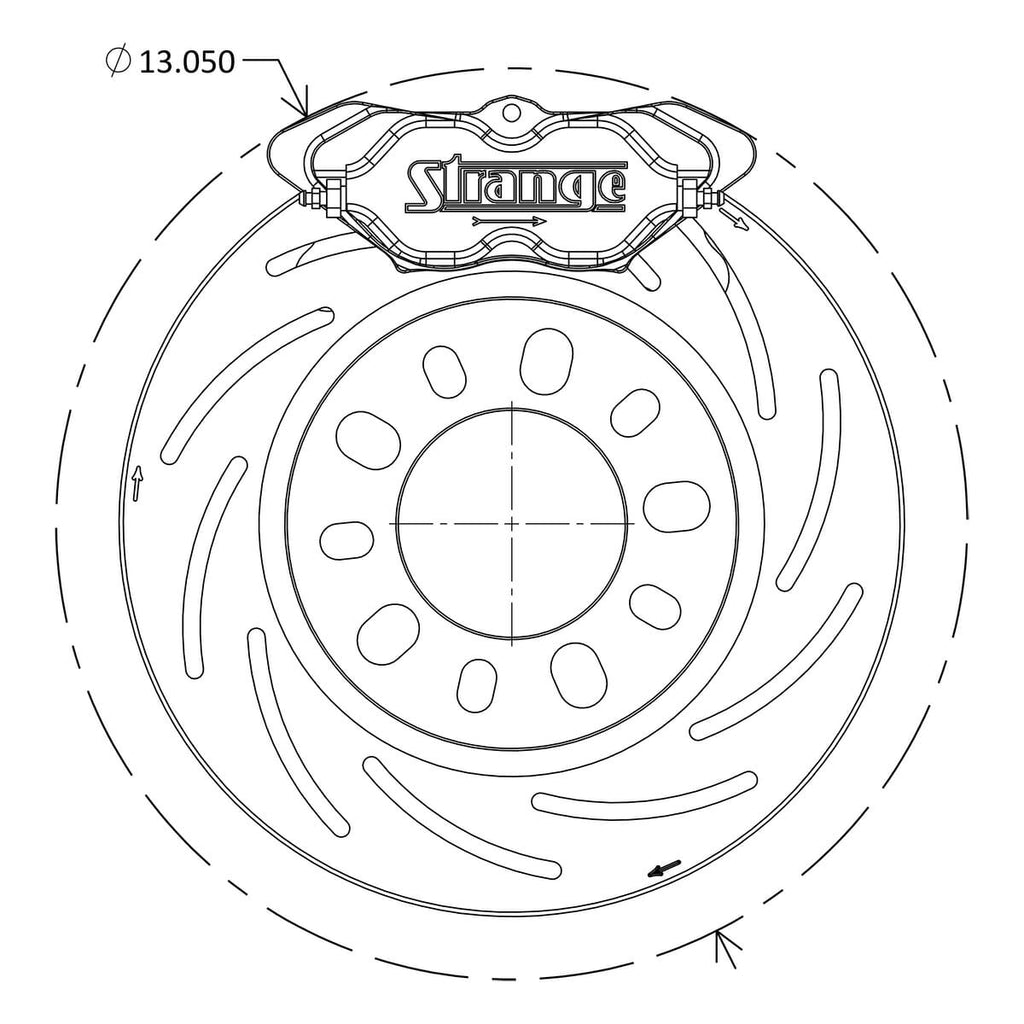

One-Piece Forged Steel Rotors – B2792 / B2793
- Directional slots increase air flow and reduce weight
- One-piece design eliminates bolts & safety wire
- Hat section drilled & milled to further reduce weight

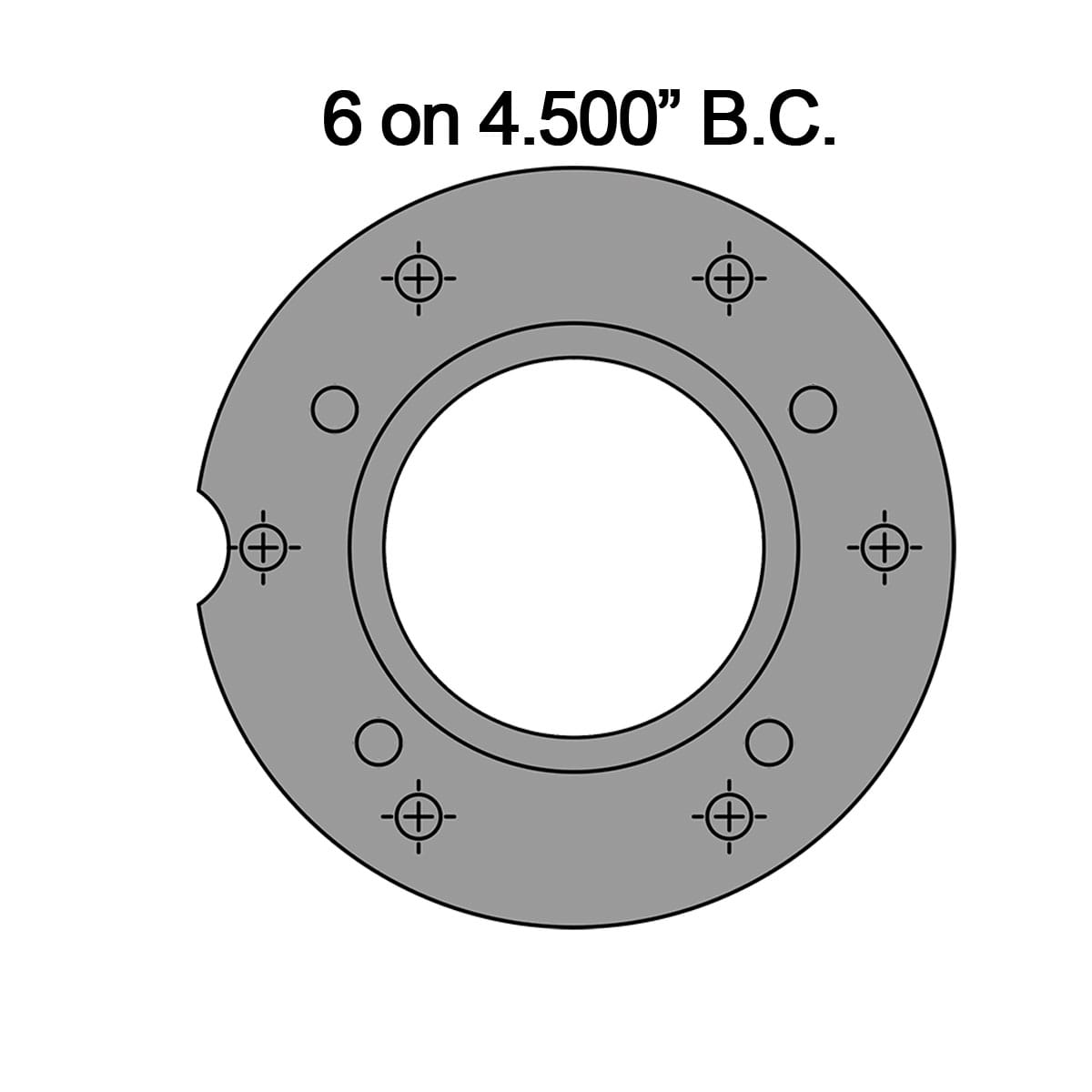

- 4 1/2″, 4 3/4″ & 5″ Uni-Lug bolt circles for both 1/2″ & 5/8″ studs
Four-Piston Directional Calipers – B5002 / B5004
- Aluminum bodies drastically reduce weight
- 1.625″ & 1.750″ pistons vary pressure, decreasing pad taper
- Stainless steel pistons resist corrosion
- Anti-rattle clips reduce brake pad vibration and noise

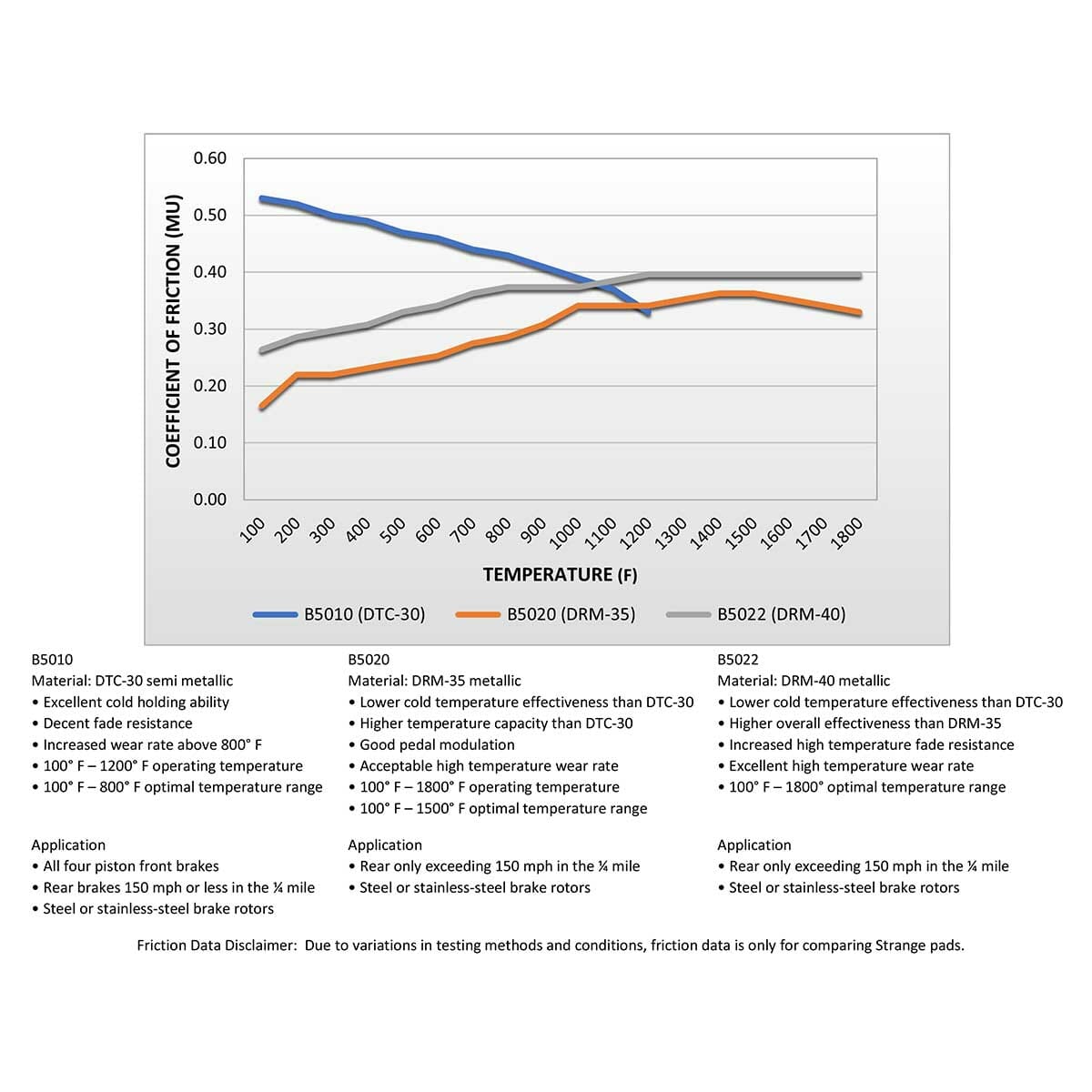

DTC-30 Semi-Metallic Brake Pads – B5010
- Provides the best starting-line cold holding power
- Recommended for vehicles going 150 MPH or less in the 1/4 mile
Aluminum Caliper Mounts
- Billet one-piece design
- Eliminates bolts, spacers & nuts that require periodic maintenance
Housing End Bolt Kit
- Provides additional components not supplied in most aftermarket kits
Optional Upgrades:
- Need More Wheel Clearance? Evolution 4 Low Profile Caliper Option – OPRB10
- Want Billet Calipers? Evolution 4 Billet Caliper Option – OPRB07
Additional Notes:
- Brake hoses and lines are not included
- Calipers are tapped 1/8″ NPT and supplied with a straight male 3 AN fitting
- Use Teflon® tape or liquid on the pipe threads of the fitting
- Leave a few threads from the tip uncoated to avoid material deposits inside the caliper
- Torque fitting to 25 ft-lbs
Related Part:
With DRM-35 pads – B1158WCM
