Description

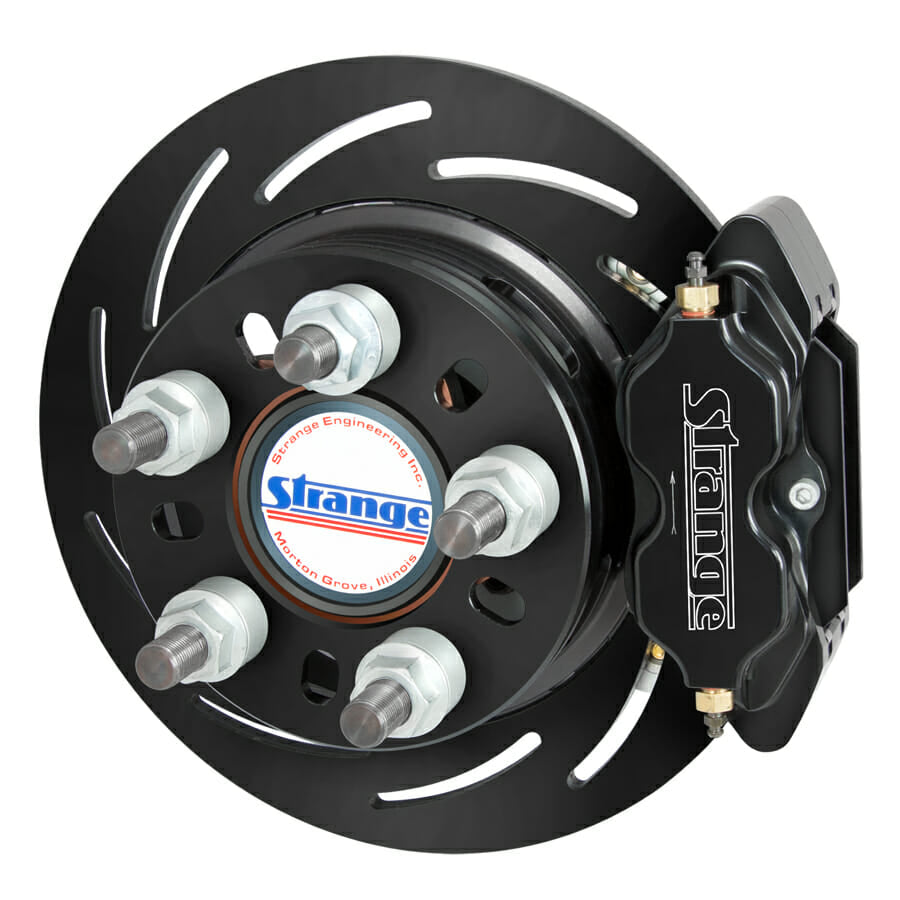

Pro II Rear Brake Kit for 1 Pc Aluminum Dragster Housing with DTC-30 Semi-Metallic Pads
Designed Specifically For Drag Racing
Pro II Rear Brake Kit
For Strange one-piece aluminum Dragster housing (Strange Engineering H1151 / Strange Engineering H1161 / Strange Engineering H1152 / Strange Engineering H1162)
Requires:
• Ball style axle bearings

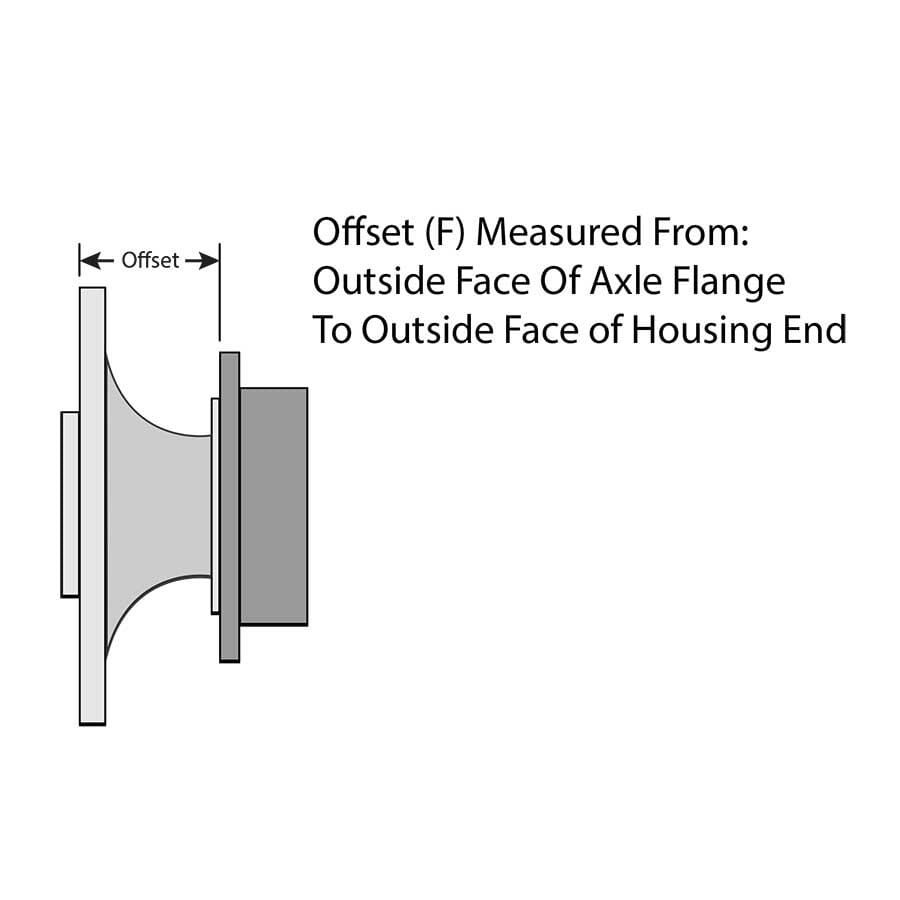

• 2.832″ brake offset

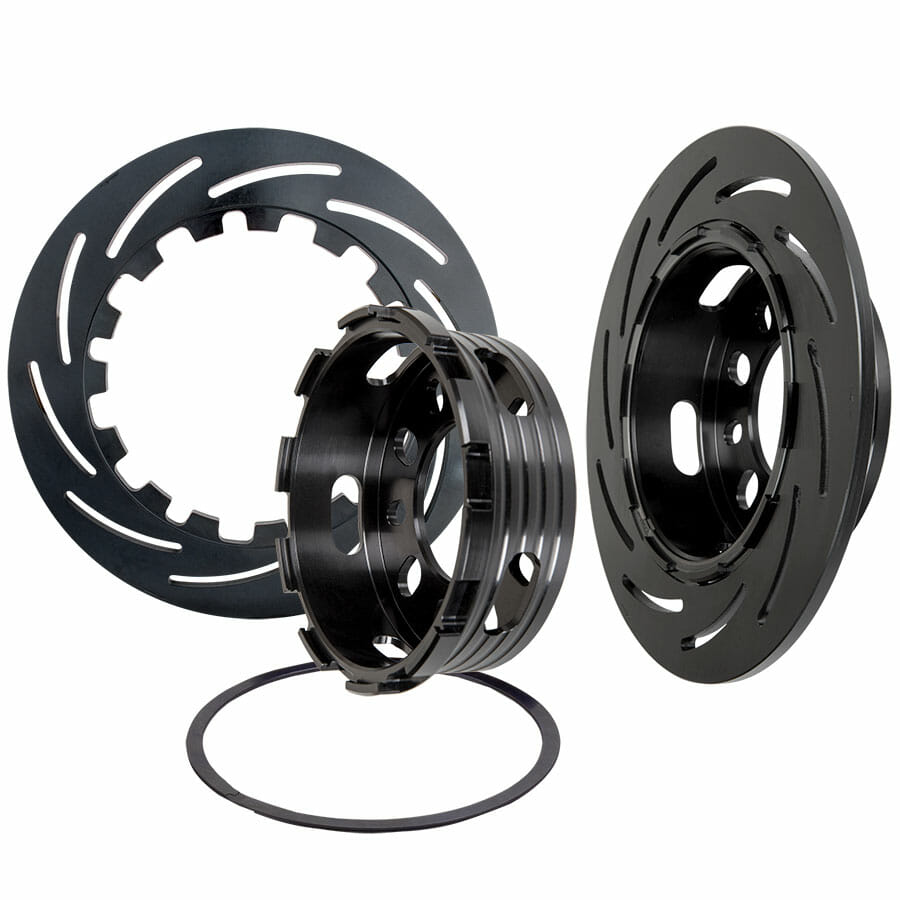

Two-Piece Floating Slotted Steel Rotors – Strange Engineering B2794L / Strange Engineering B2794R
- Isolates rotor from hat section
- Eliminates pulling forces that can result in cupped rotors
- Slots improve air flow, assist in warpage prevention, and reduce weight
- 4 1/2″, 4 3/4″ & 5″ Uni-Lug bolt circles for both 1/2″ & 5/8″ studs

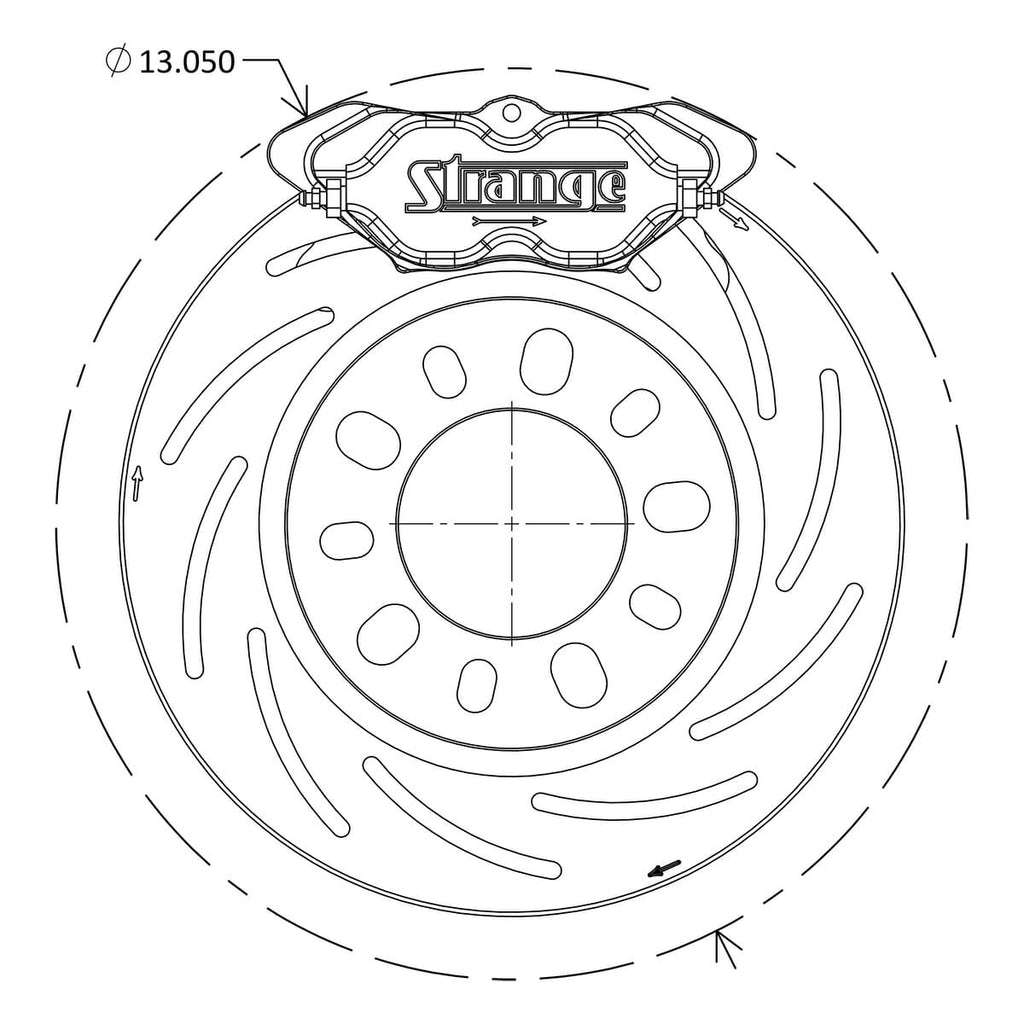

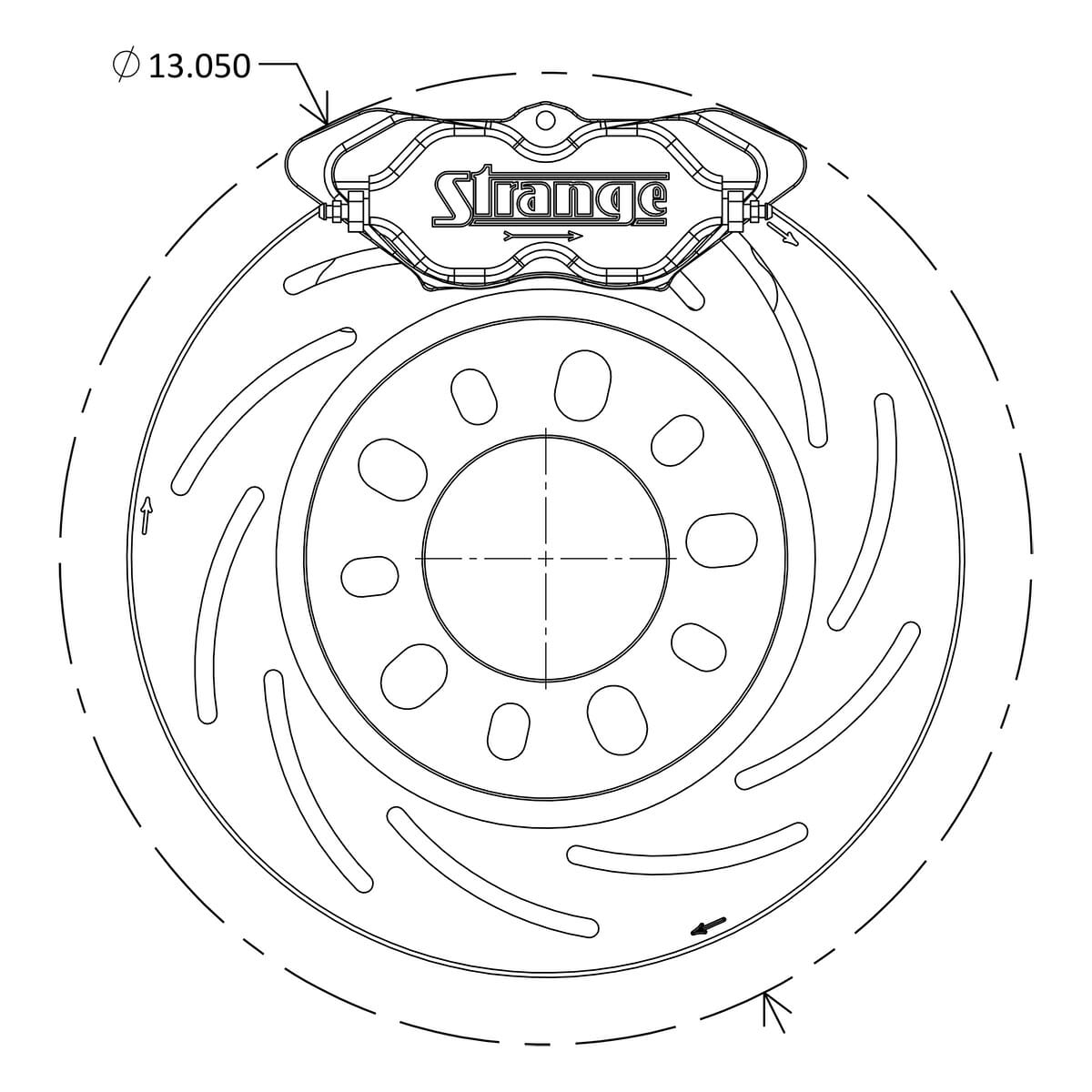

Four-Piston Directional Calipers – Strange Engineering B5002 / Strange Engineering B5004
- Aluminum bodies drastically reduce weight
- 1.625″ & 1.750″ pistons vary pressure, decreasing pad taper
- Stainless steel pistons resist corrosion
- Anti-rattle clips reduce brake pad vibration and noise

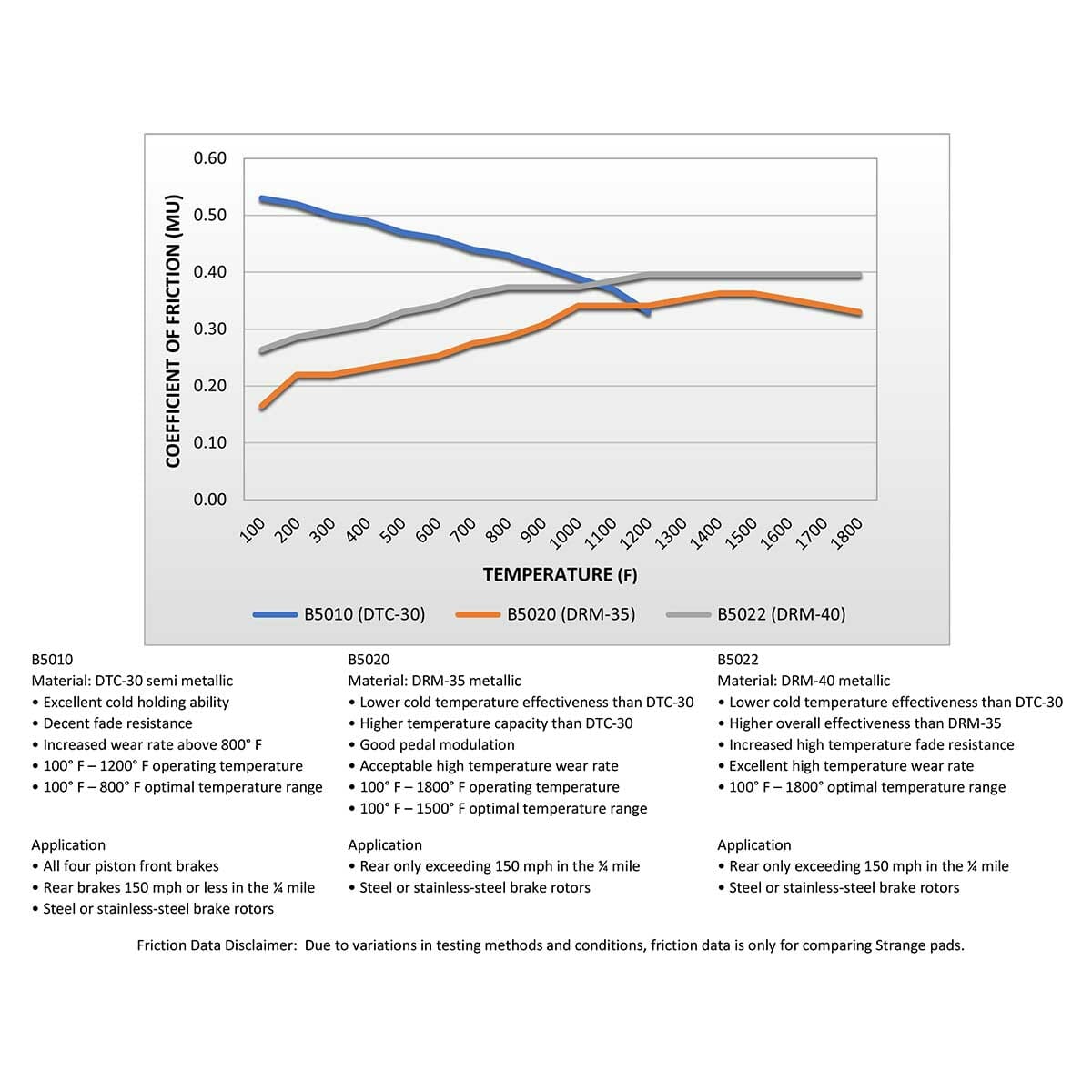

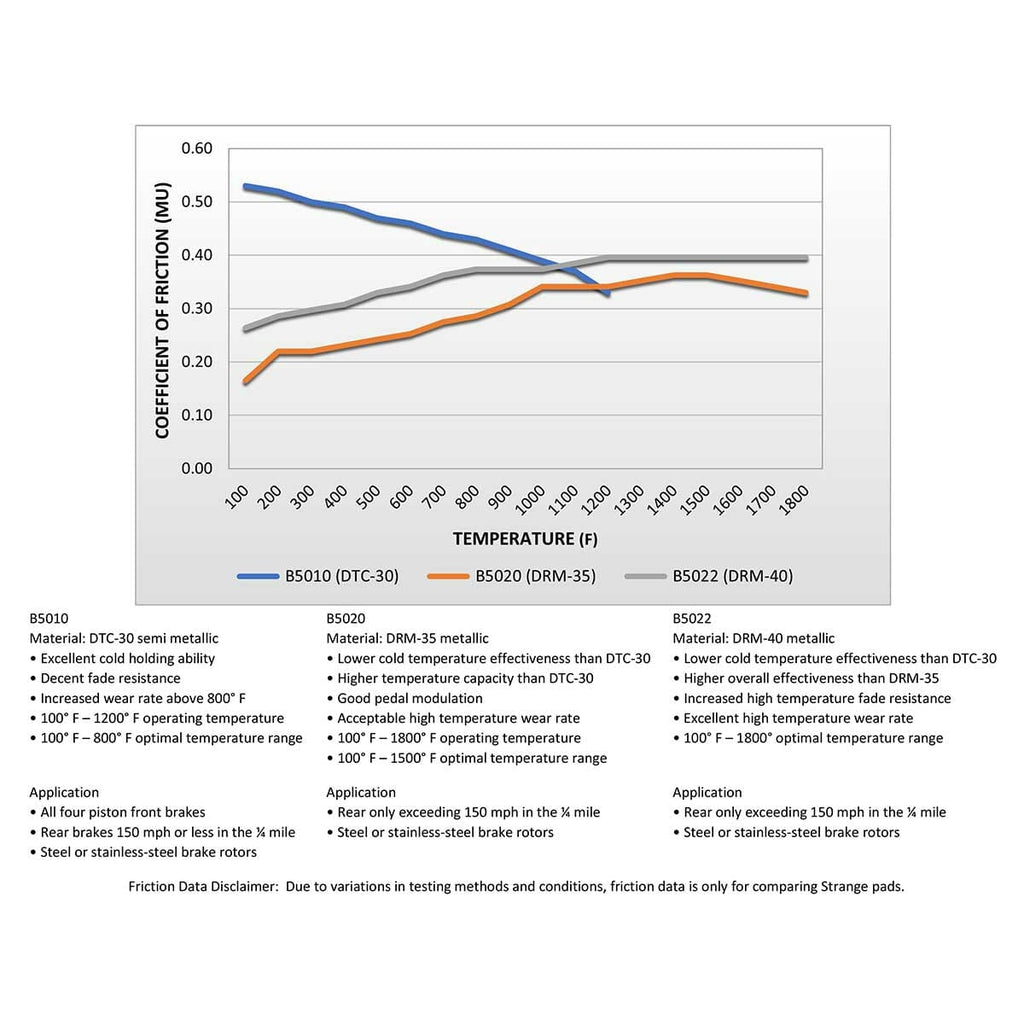

DTC-30 Semi-Metallic Brake Pads – Strange Engineering B5010
- Provides the best starting-line cold holding power
- Recommended for vehicles going 150 MPH or less in the 1/4 mile
Aluminum Caliper Mounts
- Billet one-piece design
- Eliminates bolts, spacers & nuts that require periodic maintenance

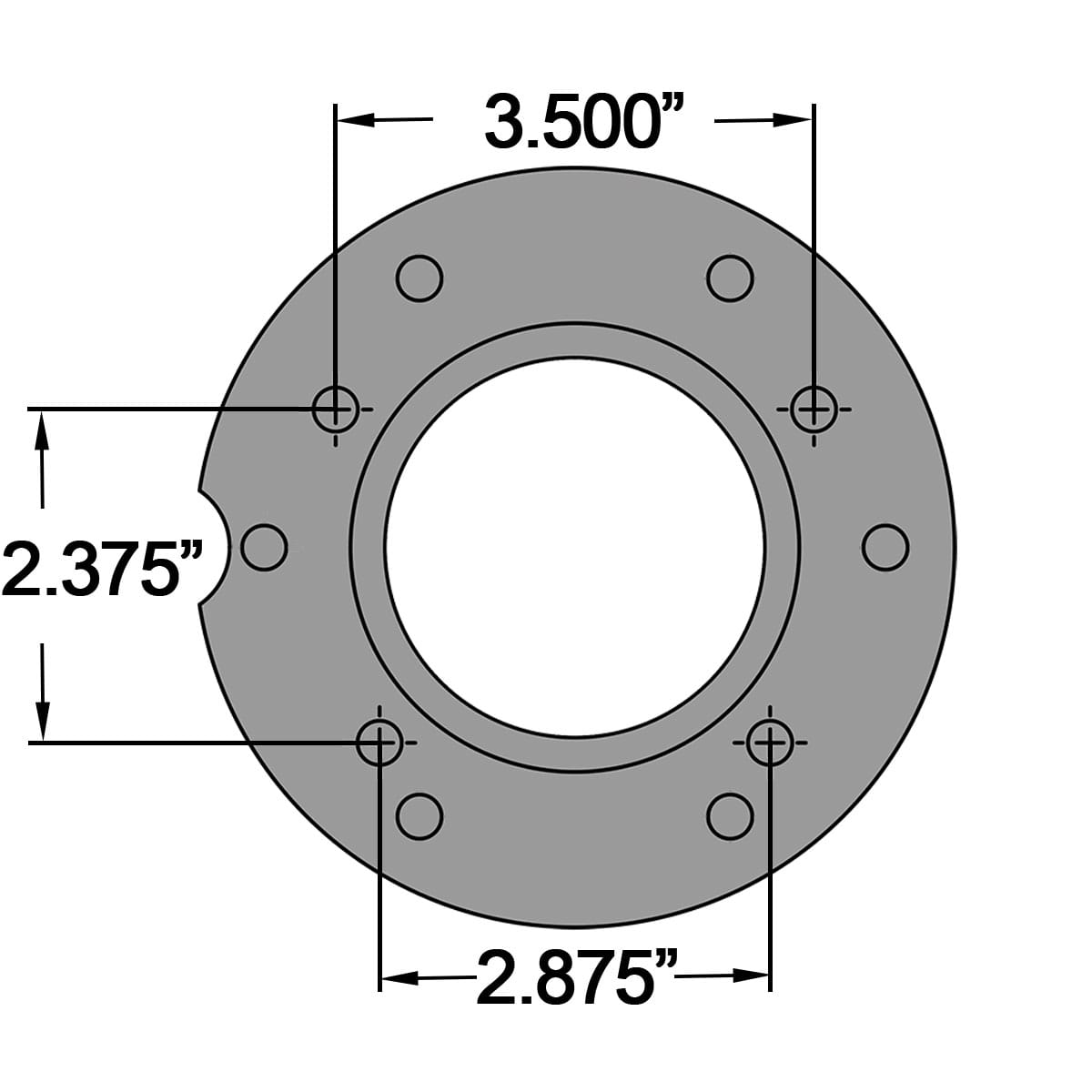

Housing End Bolt Kit
- Provides additional components not supplied in most aftermarket kits
Optional Upgrades:
- Need More Wheel Clearance? Evolution 4 Low Profile Caliper Option – Strange Engineering OPRB10
- Want Billet Calipers? Evolution 4 Billet Caliper Option – Strange Engineering OPRB07
Additional Notes:
- Brake hoses and lines are not included
- Calipers are tapped 1/8″ NPT and supplied with a straight male 3 AN fitting
- Use Teflon® tape or liquid on the pipe threads of the fitting
- Leave a few threads from the tip uncoated to avoid material deposits inside the caliper
- Torque fitting to 25 ft-lbs
Related Part:
With DRM-35 pads – Strange Engineering B1150WCM2
