Description
Strange Engineering S5256 Single Adjustable Rear Shock | 1970-1979 F100 Pick-Up
Application
1970–1979 Ford F100 Pick-Up
Description
Single Adjustable Aluminum Shock
Rear – Sold individually
Adjustment Settings
Soft Settings
Ideal for Drag Racing
Allows more downward force to be applied to the rear tires
Medium Settings
Great for Performance Street Use
Enhances handling and cornering characteristics
Stiff Settings
Suited for Road Racing
Provides very aggressive control over body roll
Note: Rotating the knob clockwise stiffens the valving.

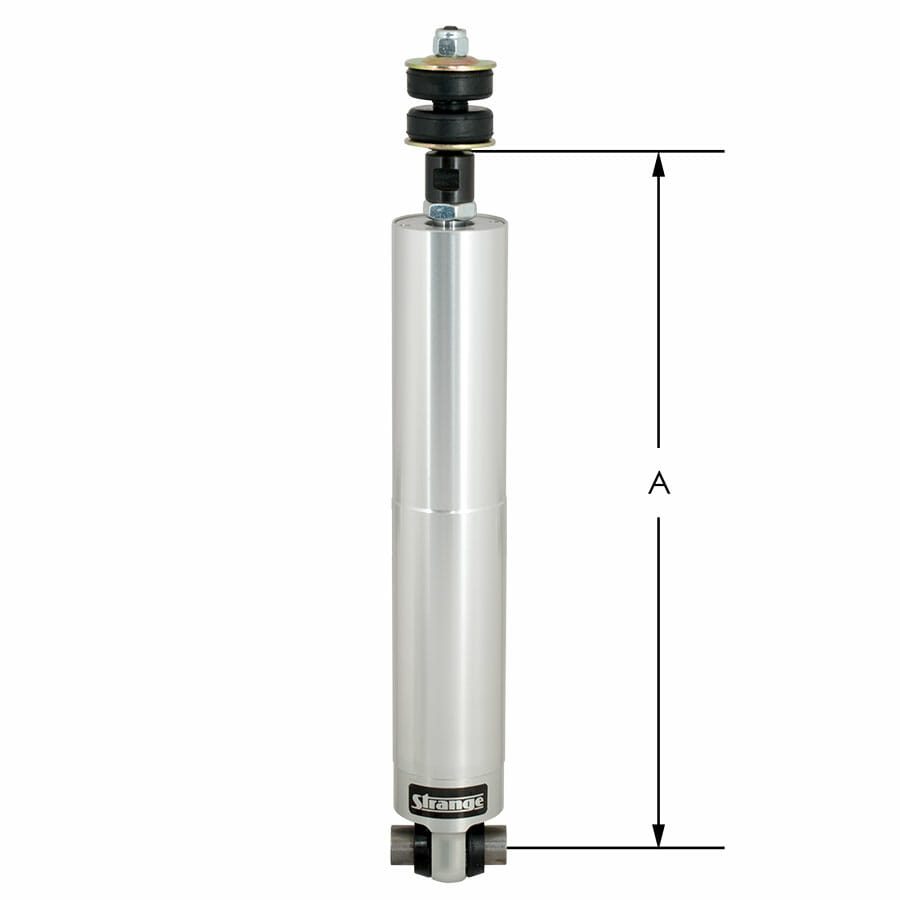

Dimension A
Extended: 20.10″
Compressed: 12.90″
Note: Dimensions exceed OEM shock by 0.750″ due to clearance required for adjustable valving.
Features
- Lightweight aluminum body
- 10 extension settings
- Wide range of control

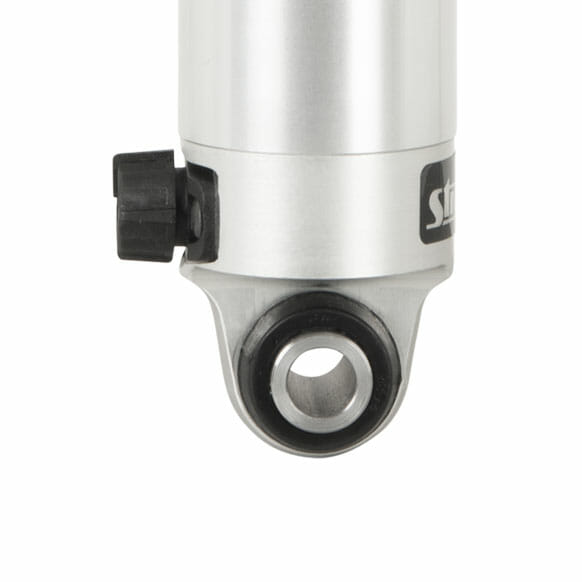

- Easily accessible external adjustment knob
- Quick changes for varying conditions
- Custom valving available upon request
- Rebuildable and revalvable
Includes
- Upper stud with rubber cushions
- Concave washers and lock nut
- Lower polyurethane bushing
- Steel inner sleeve
Related Components
Front Shock….. Strange Engineering S5255
Product: Single Adjustable Rear Shock | 1970–1979 F100 Pick-Up
Quantity: 1 (sold individually)
