Description
Ultra Fab Ford 9 in Rear End for 79-04 Mustang with Mounts, Ends, Fill, Drain, & Vent.
Ultra Fabricated housing centers are constructed from .125” alloy steel with a heavy duty .375” face plate. Triangulated design provides rigid housing tube support for more consistent and straighter launches. Internal radial gusset plates brace end of housing tube and increase overall housing stiffness. Tube insertion locations are slotted for 5” to allow complete and secure welding of the tubes to the housing. The housing is designed to provide the clearance necessary for cases with heavy duty main caps and also allowing the use of 9”, 9 1/2”, or 10” gear sets. Both housing centers come equipped with center section studs installed.
The housing is fitted with fill and drain plugs, tubed with .250” wall, 3 1/4” mild steel tubing, and choice of mounts and housing ends. This configuration is the safest way to maintain the proper alignment of the housing ends. The fixturing and welding of the housing ends is always our last operation. For vehicles that will see very hard launches, there is an option to weld a back brace along the rear of the housing. It is designed to eliminate housing and tube flex that can occur under harsh conditions. An optional satin black powder coat finish is also available.
Application
- 1979–2004 Mustang
- Custom widths available at no additional charge
Pinion Offset
- .625″ to the passenger side
- Same as OEM 8.8 housing
Information Required
- Type of housing ends
- Housing width
100XF Material
- Extra high strength cold formed steel
- Utilized in top-tier NASCAR housings
- Equivalent strength of chromoly
- Less prone to fatigue cracking than chromoly
- Highly ductile in the heat-affected weld zone
- Low carbon content – easily MIG or TIG welded
Features
- Triangulated rigid design
- Constructed from .125″ material
- Heavy-duty .375″ face plate
- Internal radial gusset plates
- Tube locations slotted & welded for 5″
- Clearance provided for cases with HD main caps
- Housing will accept 9″, 9½″, or 10″ development gear sets

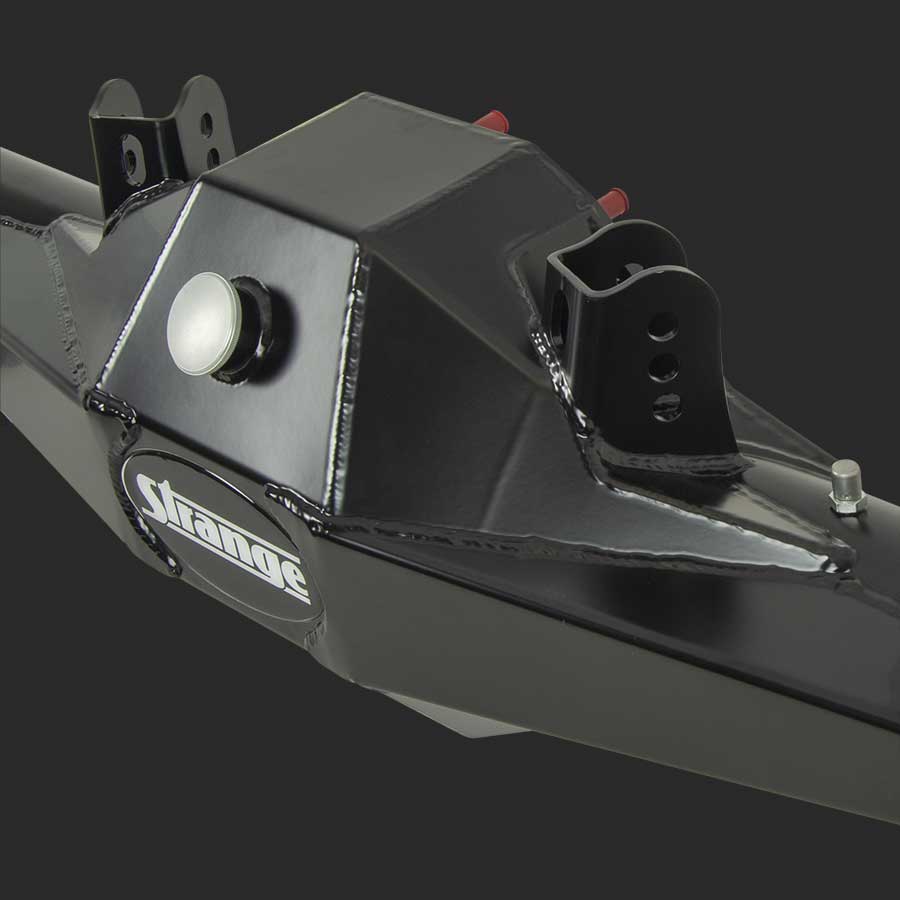

Fill & Drain Plugs – Strange Engineering H1116 / H1117D

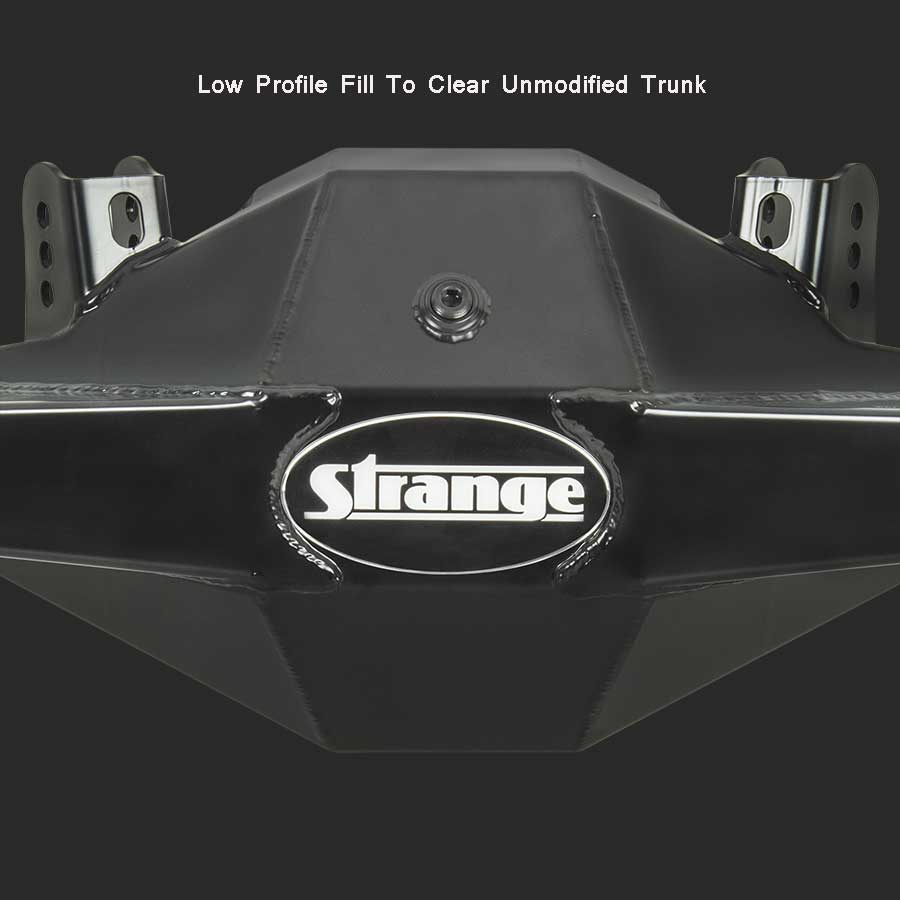

- Choice of low profile or standard fill plug*
- Facilitates fluid changes
- Allows inspection of ring gear
*Standard fill plug requires modification of trunk for clearance
Housing Tubing – Strange Engineering H1141
- DOM 1026 steel
- 3.250″ OD x .250″ wall thickness
Vent – Strange Engineering H1112B
- Prevents internal pressure build-up
- Ensures sealing integrity
Multiple Upper Control Arm Mounting Holes*
- .750″ between holes
- Center hole matches factory location
- 1.665″ inner ear width
*Requires aftermarket arms using rod ends (Racecraft® #327430 or equivalent)

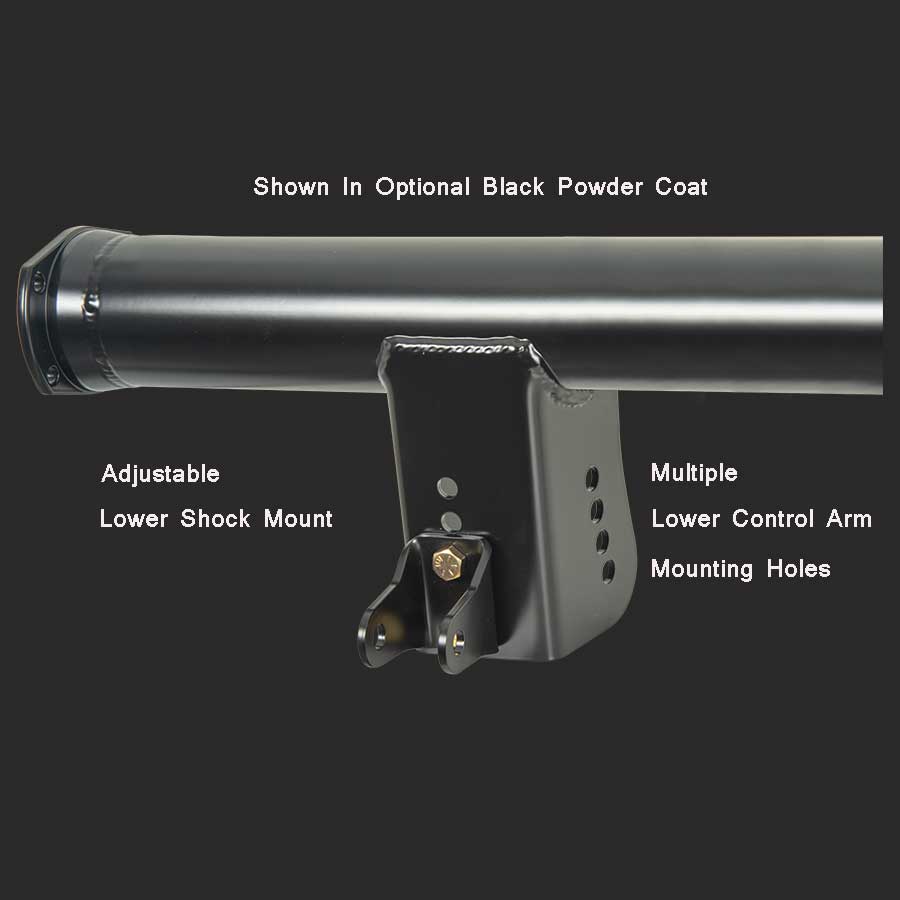

Multiple Lower Control Arm Mounting Holes
- Provides additional chassis tuning abilities
Adjustable Shock Mounts
- 6 positions with .375″ increments
- 1.875″ of adjustment
- Allows ride height adjustments without affecting stroke
Choice of Housing Ends – Strange Engineering H1138 / H1137
- Forged chrome moly
- Accepts 3.150″ bearings
- Other Strange Engineering ends available
Professionally Welded
- Jig welded for proper alignment
- Tubes welded internally and externally
- Maximum support and rigidity

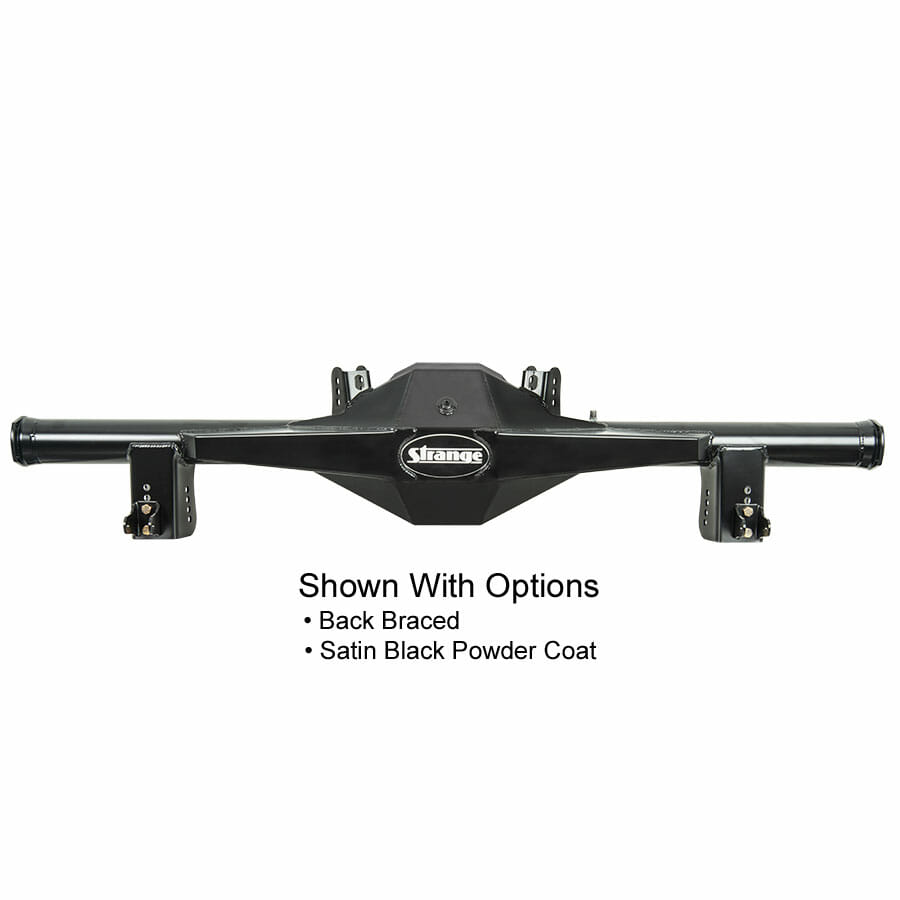

Options
- Powder coat housing – Strange Engineering H1199P-BLK
- Install back brace – Strange Engineering H1128N
Related Components
- Gasket – Lube Locker: Strange Engineering H1111S
Axle Packages
- Alloy 35 – Strange Engineering P3502 / P350258
- Pro Race 35 – Strange Engineering P1007 / P100758
- Pro Race 40 – Strange Engineering P1016 / P1014
Part Number
Strange Engineering HF9M86MEUF
